33 31 503 Lowering/raising rear axle carrier
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Danger of injury!
Failure to comply with the following instructions may result in the vehicle slipping off the lifting platform and critically injuring other persons.
Read and observe the information on load distribution in the Owner's Handbook, lifting platform.
Before lowering/removing the rear axle carrier, it is essential to place a minimum load of 100 kg in the luggage compartment to prevent the vehicle from toppling/slipping off the lifting platform!
Failure to comply with the following instructions may result in the vehicle slipping off the lifting platform and critically injuring other persons.
Read and observe the information on load distribution in the Owner's Handbook, lifting platform.
Before lowering/removing the rear axle carrier, it is essential to place a minimum load of 100 kg in the luggage compartment to prevent the vehicle from toppling/slipping off the lifting platform!
When supporting components, make sure that
- the vehicle can no longer be raised or lowered
- the vehicle does not lift off the locating plates on the lifting platform
NOTE:
If the rear axle carrier is detached from the body, it is necessary after reinstallation to carry out a wheel/chassis alignment check.
Necessary preliminary tasks
- Remove PROPELLER SHAFT FROM REAR DIFFERENTIAL and tie back
- Release shock absorber . See 3712131 REPLACING LEFT OR RIGHT REAR SHOCK ABSORBER (ADAPTIVE M SUSPENSION) or 3352000 REMOVING AND INSTALLING/REPLACING REAR LEFT OR RIGHT SHOCK ABSORBER on left and right on trailing arm
IMPORTANT:
Risk of damage!
Brake hose must not be exposed to tensile loads.
Brake hose must not be exposed to tensile loads.
Release screws (1) on trailing arm on left and right and remove holder.
Tightening torque 34 32 4AZ .
Disconnect PLUG CONNECTION from ride-height sensor
Support rear axle carrier with workshop jack and special tool 31 5 250 .
IMPORTANT:
Risk of injury!

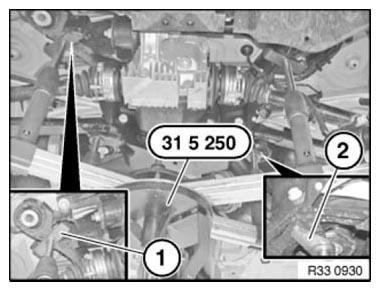

Position support (1) at rear on rear axle carrier.
Position support (2) in bore at front on rear axle carrier.
Position support (1) at rear on rear axle carrier.
Position support (2) in bore at front on rear axle carrier.

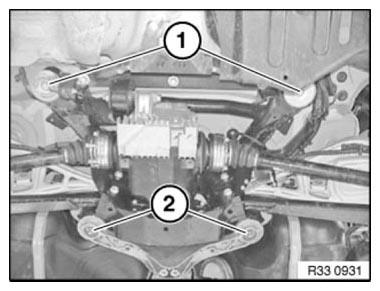

Release screws (1).
Release nuts (2) and remove tension strut.
Tightening torque 33 33 1AZ .
Lower rear axle carrier slowly.
Installation:
Check threads for damage; if necessary, repair with HELICOIL THREAD INSERTS .
Check seating of coil springs with spring pads, correct if necessary.
Installation:

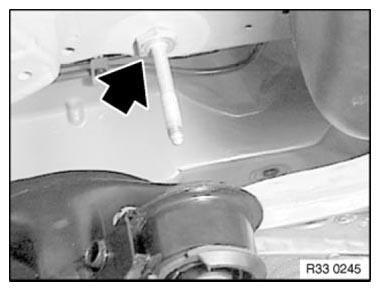

Check threaded pin for damage, replace if necessary.
Tightening torque 33 33 2AZ .
