33 32 087 Removing and installing/replacing bottom right control arm

Necessary preliminary tasks

• Remove REAR WHEEL .
• Remove output shaft from rear differential  . See 3321001 REMOVING AND INSTALLING OR REPLACING LEFT OUTPUT SHAFT  or 3321002 REMOVING AND INSTALLING/REPLACING RIGHT OUTPUT SHAFT

Support trailing arm from underneath using a workshop jack.

Spread cover on lower control arm and pull off.

Installation:

Opening in cover points upwards.

Fig 1: Pulling Lower Control Arm Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Mark position of eccentric screw (1) to lower control arm with center marks (2).

Replacement only: Carry over marking from old part to new part.

Fig 2: Identifying Mark Position Of Eccentric Screw With Centre Marks On Lower Control Arm

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (1) and remove eccentric washer (2).

Remove eccentric screw towards front.

Installation:

Note insertion direction of eccentric screw.

Align eccentric screw by means of marking to lower control arm.

Fit eccentric washer (2).

Replace nut (1).

Tightening torque 33 32 3AZ .

Fig 3: Identifying Eccentric Washer With Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (2).

Installation:

Tighten bolt in normal position.

Tightening torque 33 32 4AZ .

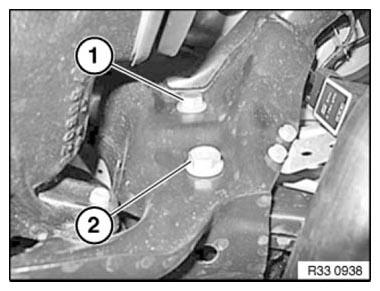

Fig 4: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Weld seam of control arm must point upwards.

Fig 5: Locating Weld Seam Of Control Arm

Courtesy of BMW OF NORTH AMERICA, INC.

After installation

• Check that output shaft is correctly seated in rear differential.
• Perform CHASSIS ALIGNMENT CHECK
