36 10 300 Removing or installing front or rear wheel

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Wheel was balanced electronically.

Observe the following in order to avoid positioning errors and imbalance:

Loosen wheel bolts.
Wheel positioned with valve facing down.
If several wheels are simultaneously removed, mark installation location of wheels on tires (e.g. with a piece of chalk).
Mark out wheel to wheel hub.
Mark out lockable wheel bolt in relation to wheel.
Release wheel bolts and remove wheel.

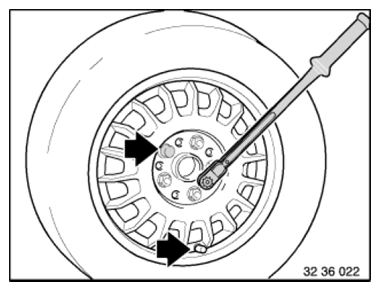

Fig 1: Identifying Wheel Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Contact surfaces between brake disc and disc wheel and between brake disc and wheel hub must be free of grease.
Follow instructions on initializing Run Flat Indicator (RPA) .
When fitting all four wheels (e.g. when changing from summer to winter wheels), check the tire inflation pressure.
To avoid tire damage, advise the customer to check the tire inflation pressures on a regular basis

Remove dirt, grease residues and corrosion from contact surface (1) with a drill and special tool 36 1 250.

IMPORTANT: Do not operate special tool 36 1 250 with an impact screwdriver!

NOTE: Degrease contact face with universal cleaner, refer to BMW Parts Department.

NOTE: If there are grease residues in the area of the wheel bolt bore, the brake disc must be removed See 3411220 REMOVING AND INSTALLING/REPLACING BOTH FRONT BRAKE DISCS or 3421320 REMOVING AND INSTALLING OR REPLACING BOTH REAR BRAKE DISCS and cleaned.

Remove dirt, grease residues and corrosion from contact surface (1) with a drill and special tool 81 25 2 344 011.

IMPORTANT: Do not operate special tool 81 25 2 344 011 with an impact screwdriver!

NOTE: Degrease contact face with universal cleaner, refer to BMW Parts Department.

NOTE: If there are grease residues in the area of the wheel stud hole, the brake disc must be removed and cleaned.

Fig 2: Identifying Special Tool 81 25 2 344 011

Check brake disc retaining bolt (1) for tight fit.

IMPORTANT: Brake disc retaining bolt must under no circumstances protrude over contact surface (2) between brake disc and disc wheel.
Tightening torque, brake disc retaining screw,
Front axle, 34 11 1AZ .
Rear axle 34 21 1AZ .

Fig 3: Identifying Brake Disc Mounting Bolt Position With Brake Disc And Disc Wheel Contact Surface

Courtesy of BMW OF NORTH AMERICA, INC.

Apply a thin coat of grease to wheel centering (1) in disc wheel.

Fig 4: Identifying Wheel Centering On Disc Wheel

Courtesy of BMW OF NORTH AMERICA, INC.

Wheel studs with taper:

Wheel bolt - galvanized
Wheel bolt - black chrome plated
Wheel bolt - black chrome plated and lockable
Lockable wheel bolt with adapter, black chrome-plated

NOTE: To release and tighten down lockable wheel bolt, use a matching adapter from special tool 36 1 300 (wheel bolt adapter set).

Fig 5: Identifying Wheel Bolts With Taper

Courtesy of BMW OF NORTH AMERICA, INC.

Clean wheel bolts and check threads for damage, replace, if necessary.

Replace rusty wheel bolts.

IMPORTANT: Do not apply oil to wheel bolts.

IMPORTANT: Under no circumstances use pneumatic or power screwdrivers to install and tighten the wheel bolts.

IMPORTANT: Disc wheel must rest uniformly against brake disc.

In the case of non-original BMW wheel bolts/rims it may be necessary to retighten the wheel bolts on account of settling properties (refer to manufacturer's documents).

Screw in wheel bolts and, to center disc wheel, tighten down by hand diagonally and evenly.

Using torque wrench, firmly tighten wheel bolts in diagonal and even sequence.

Tightening torque 36 10 1AZ .

Fig 6: Tightening Wheel Bolts Using Torque Wrench

Courtesy of BMW OF NORTH AMERICA, INC.
