33 32 086 Removing and installing/replacing bottom left control arm

Necessary preliminary tasks

• Remove REAR WHEEL .
• Remove shock absorber  . See 3712131 REPLACING LEFT OR RIGHT REAR SHOCK ABSORBER (ADAPTIVE M SUSPENSION) or 3352000 REMOVING AND INSTALLING/REPLACING REAR LEFT OR RIGHT SHOCK ABSORBER  from trailing arm

When supporting components, make sure that

• the vehicle can no longer be raised or lowered
• the vehicle does not lift off the locating plates on the lifting platform

Mark position of eccentric screw (1) to lower control arm with center marks (2).

Replacement only: Carry over marking from old part to new part.

Fig 1: Marking Position Of Eccentric Screw With Centre Marks On Lower Control Arm

Courtesy of BMW OF NORTH AMERICA, INC.

Support trailing arm from underneath using a workshop jack.

Spread cover on lower control arm and pull off.

Installation:

Opening in cover points upwards.

Fig 2: Pulling Lower Control Arm Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (1) and remove eccentric washer (2).

Remove eccentric screw towards front.

Installation:

Note insertion direction of eccentric screw.

Align eccentric screw by means of marking to lower control arm.

Fit eccentric washer (2).

Replace nut (1).

Tightening torque 33 32 3AZ .

Fig 3: Identifying Eccentric Washer With Nut

Courtesy of BMW OF NORTH AMERICA, INC.

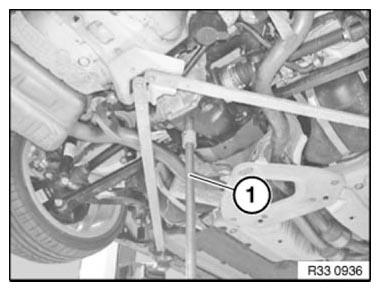

Support rear differential with workshop jack (1).

Fig 4: Supporting Rear Differential Using Workshop Jack

Courtesy of BMW OF NORTH AMERICA, INC.

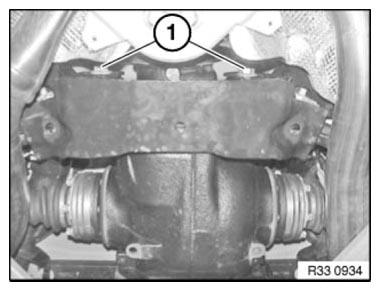

Release bolts (1) on rear axle differential at front and slide out towards rear until rear axle differential is exposed.

Tightening torque 33 17 1AZ .

Fig 5: Identifying Bolts On Rear Axle Differential

Courtesy of BMW OF NORTH AMERICA, INC.

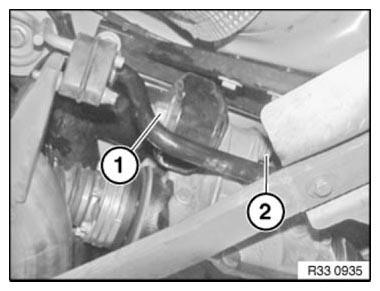

Unfasten nut (1) and remove screw (2).

Tightening torque 33 17 2AZ .

Fig 6: Identifying Rear Axle Differential Nut And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

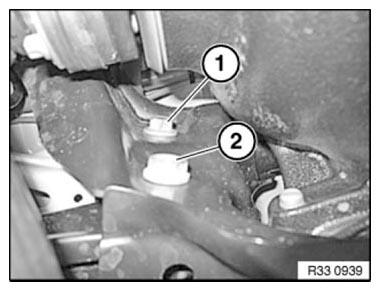

Release screw (2).

Installation:

Tighten bolt in normal position.

Tightening torque 33 32 4AZ.

Fig 7: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

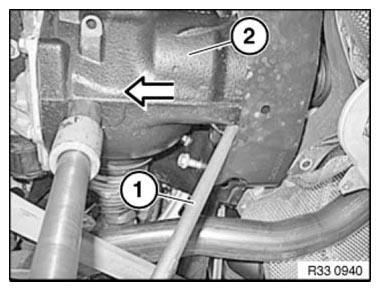

Press rear differential (2) with tire iron (1) towards rear and unscrew bolt from control arm/rear axle carrier.

Remove bottom control arm.

Fig 8: Pressing Rear Differential Using Tyre Iron

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Weld seam of control arm must point upwards.

Fig 9: Locating Weld Seam Of Control Arm

Courtesy of BMW OF NORTH AMERICA, INC.

After installation

• Check that output shaft is correctly seated in rear differential.
• Perform CHASSIS ALIGNMENT CHECK
