33 32 024 Replacing a ball joint in trailing arm

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work

Detach wishbone . See 3332076 REMOVING AND INSTALLING/REPLACING TOP LEFT CONTROL ARM or 3332077 REMOVING AND INSTALLING/REPLACING TOP RIGHT CONTROL ARM at top from trailing arm.
Remove BRAKE DISC .
Detach BRAKE GUARD PLATE .

Measure protrusion (A) of previous ball joint and note down.

Fig 1: Identifying Protrusion Of Ball Joint

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out ball joint with special tools 33 3 331, 33 3 332 and 33 3 333.

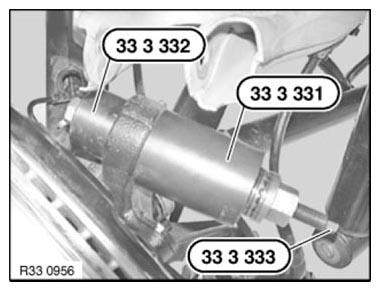

Fig 2: Pulling Out Ball Joint Using Special Tools (33 3 331, 33 3 332 And 33 3 333)

Courtesy of BMW OF NORTH AMERICA, INC.

Keep trailing arm eye and ball joint (1) clean and free from oil and grease.

Draw in new ball joint (1) with special tools 33 3 332, 33 3 333 and 33 3 334 to previously determined protrusion (A).

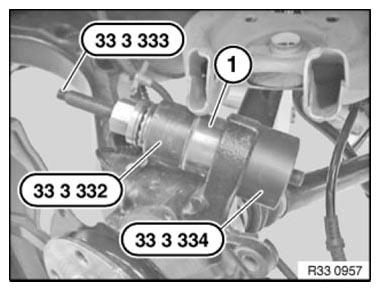

Fig 3: Installing Ball Joint Using Special Tools (33 3 332, 33 3 333 And 33 3 334)

Courtesy of BMW OF NORTH AMERICA, INC.

After installation

Carry out WHEEL ALIGNMENT PROCEDURE .
