33 32 076 Removing and installing/replacing top left control arm

Necessary preliminary tasks

• Remove COIL SPRING
• Remove rear axle underbody protection

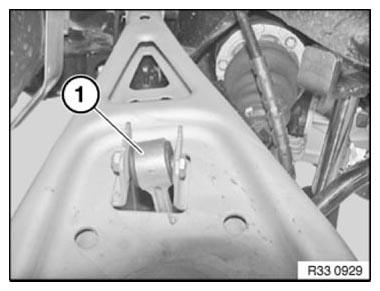

Release stabilizer on upper control arm.

Tightening torque 33 55 2AZ .

Fig 1: Identifying Stabilizer On Upper Control Arm

Courtesy of BMW OF NORTH AMERICA, INC.

Support rear differential with workshop jack (1).

Fig 2: Supporting Rear Differential Using Workshop Jack

Courtesy of BMW OF NORTH AMERICA, INC.

Release bolts (1) on rear differential at front. And slide out towards rear axle differential is exposed.

Tightening torque 33 17 1AZ .

Fig 3: Identifying Bolts On Rear Axle Differential

Courtesy of BMW OF NORTH AMERICA, INC.

Release bolt (1) on rear differential at rear.

Tightening torque 33 17 2AZ .

Fig 4: Identifying Bolt On Rear Differential

Courtesy of BMW OF NORTH AMERICA, INC.

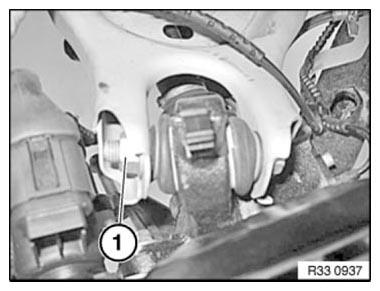

Release nut (1) and remove screw.

Tightening torque 33 32 5AZ .

Fig 5: Identifying Control Arm Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Press rear differential on opposite side and unscrew bolt towards rear.

Remove control arm at side.

Fig 6: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tighten control arm on rear axle carrier in normal position.

Tightening torque 33 32 6AZ .

Adjusting normal position:

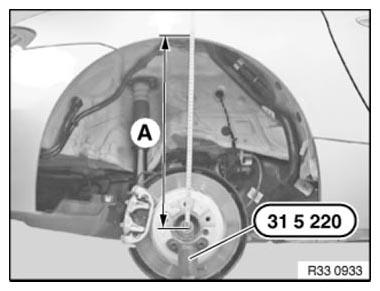

Press wheel carrier upwards with special tool 31 5 220 and workshop jack up to dimension A.

Dimension A = middle of wheel hub to top edge of wheel arch

Conventional chassis/suspension:

A = 361 mm

EDC suspension:

A = 351 mm

Fig 7: Pressing Wheel Carrier Upwards Using Special Tool (31 5 220)

Courtesy of BMW OF NORTH AMERICA, INC.

After installation

• Perform CHASSIS ALIGNMENT CHECK
