37 14 512 Replacing rear ride-height sensor

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Release nut (1) and disengage jointed rod with lever extension (2).

Tightening torque 37 14 3AZ .

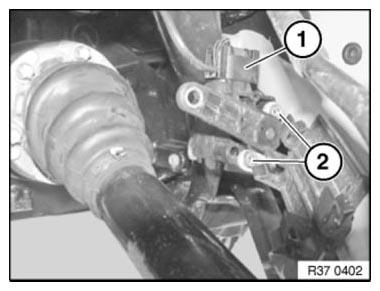

Fig 1: Identifying Jointed Rod Nut With Lever Extension

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Release screws (2) and remove ride-height sensor.

Tightening torque 37 14 1AZ .

Installation:

Sensor lever (3) must point from ride-height sensor in direction opposite to direction of travel.

Fig 2: Identifying Plug Connection And Ride-Height Sensor Screws

Courtesy of BMW OF NORTH AMERICA, INC.
