32 33 010 Removing and installing/replacing sport steering wheel

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Wheel/chassis alignment is not necessary after the steering wheel has been removed and installed or replaced.

Necessary preliminary tasks

Remove AIRBAG UNIT

Move wheels/steering wheel into straight-ahead position.

Unlock plug connections (1) and (2) and disconnect.

Release screw (3) and remove steering wheel.

Installation:

Make sure connecting lead(s) is/are correctly laid.

Tightening torque 32 33 1AZ .

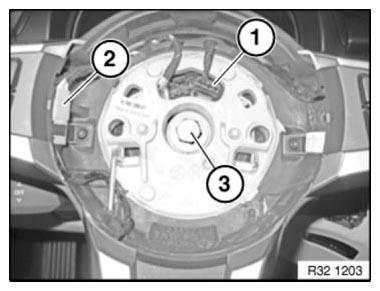

Fig 1: Identifying Plug Connections And Screws On Steering Wheel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Align steering wheel using markings (arrows) to steering column and attach.

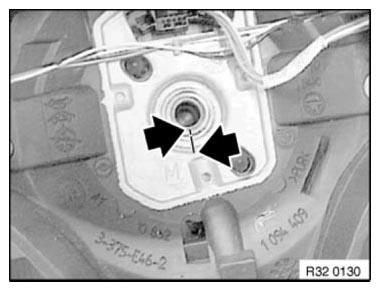

Fig 2: Locating Steering Wheel Aligning Marking

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

If necessary, modify SHIFT PADDLES
If necessary, modify MULTIFUNCTION STEERING WHEEL SWITCH
