61 31 113 Removing and installing/replacing both shift paddles for automatic transmission

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove BOTH SWITCHES FROM SPORT STEERING WHEEL

NOTE: For purposes of clarity.
Illustration shows steering wheel removed.

Release screws (1).

Disconnect plug connections (2).

Remove shift paddles for automatic transmission (3) in direction of travel.

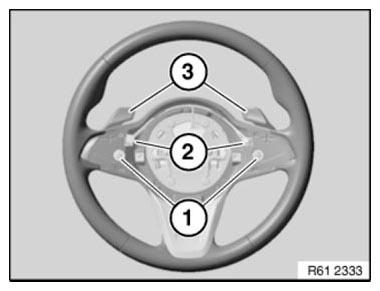

Fig 1: Identifying Shift Paddles For Automatic Transmission And Plug Connection With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure electrical leads are correctly routed.

Make sure shift paddles for automatic transmission (3) are correctly seated on steering wheel.
