61 31 229 Removing and installing/replacing both switches on sport steering wheel
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove AIRBAG UNIT
NOTE:

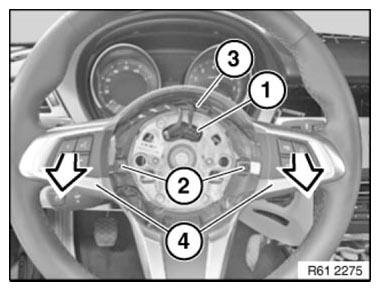

Both multifunction steering wheel switches (4) are connected to each other by the wiring harness (3).
Unfasten plug connection (1) and disconnect.
Unfasten screws (2).
Feed wiring harness (3) out of steering wheel.
Remove multifunction steering wheel switches (4) in direction of arrow.
Installation:
Make sure electrical leads are correctly routed.
