Replace bumper panel, front (X6 M)

Necessary preliminary tasks:

• Remove FRONT BUMPER PANEL .

Swap over the following parts according to version:

• LICENSE PLATE BASEPLATE .
• Protective cap for towing eye
• ORNAMENTAL GRILLE, BOTTOM .
• SIDE GRILLE .
• TOP (UPPER) GRILLE .
• LEFT FRONT FOG LIGHT and RIGHT FOG LIGHT .

  ADJUST fog lights after fitting

• Wiring harness
• All ULTRASONIC SENSORS .
• FRONT CAMERA .
• HIGH-PRESSURE JETS .

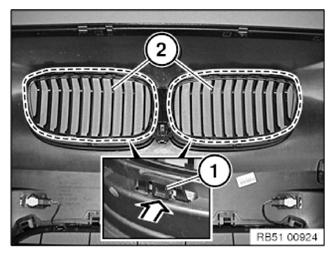

Release all retainers (1).

Remove front radiator grille (2) towards front.

Installation note:

None of the catches (1) or guides on the front radiator grille (2) must be damaged or missing.
