Install blow-off valve

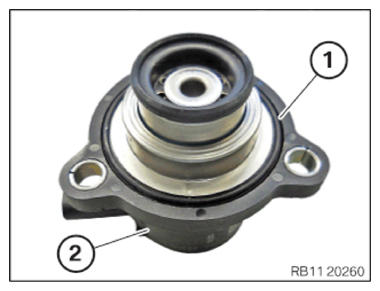

Check the seal (1) for damage and renew the blow-off valve (2) where required.

Courtesy of BMW OF NORTH AMERICA, INC.

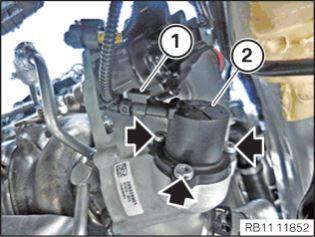

Insert and install the blow-off valve (2).

Tighten screws (arrows). Tightening torque: 10Nm

Connect and lock the connector (1).

Make sure the connector (1) engages audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work:

• Install FRONT RIGHT WHEEL ARCH COVER .
• Install FRONT RIGHT WHEEL .
