REP-TAT-3610-02 Mounting the wheel

Clean the contact surfaces between the brake disc and the wheel rim:

NOTE: TECHNICAL INFORMATION:
The contact surface between the brake disc and the wheel rim must be clean and free from oil and grease. There is otherwise a risk of the wheel becoming loose at a later time.

Courtesy of BMW OF NORTH AMERICA, INC.

Remove dirt, grease residues and corrosion from the contact surface with a drill and the special tool 2 344 011.
Do not operate special tool 2 344 011 with an impact screwdriver.
Degrease the contact surfaces with the universal cleaner (see applicable BMW Group parts sales).
If there are grease deposits in the area of the wheel bolt holes, remove and clean the brake disc.
Remove dirt, grease residues and corrosion from the contact surface with a drill and the special tool 2 344 011.
Do not operate special tool 2 344 011 with an impact screwdriver.
Degrease the contact surfaces with the universal cleaner (see applicable BMW Group parts sales).

Courtesy of BMW OF NORTH AMERICA, INC.

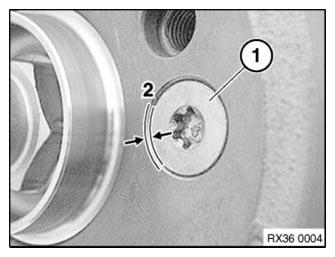

Replace the mounting bolt (1).
Parts: Mounting bolt

Check that the mounting bolt (1) for the brake disk is securely fitted.

The mounting bolt (1) for the brake disc may not protrude on the contact surface (2) between the brake disc and the wheel rim.

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATION

Brake disc to front wheel hub
M8
tightening torque
16Nm

TIGHTENING TORQUE SPECIFICATION

Brake disc to rear wheel hub
M8
tightening torque
16Nm

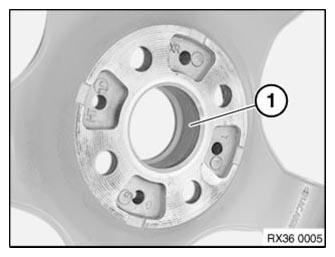

Thinly grease the wheel centering (1) in the wheel rim.
For the grease for the wheel centering (1) see further information.

Courtesy of BMW OF NORTH AMERICA, INC.

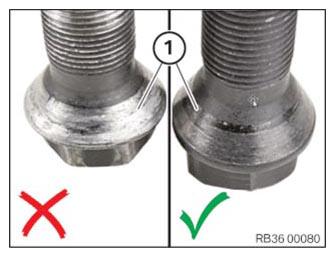

Check lug bolts for wear.

Result:

» Flat areas (> 30%) of the bearing conical surface (1) on the screw head show silver wear.

Solution:

Replace lug bolts.
IMPORTANT: Never use an impact screwdriver or electric screwdriver to apply and tighten the lug bolts.
The rim must rest evenly against the brake disc.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: In the case of non-original BMW lug bolts/wheel rims, it may be necessary to retighten the lug bolts on user account of setting properties (refer to the documentation from the manufacturer).
Do not apply oil to new lug bolts.

Courtesy of BMW OF NORTH AMERICA, INC.

Replace corroded lug bolts.
Parts: Lug bolts
Clean the lug bolts.
Check the lug bolts and threads for damage, replace the lug bolts if necessary.

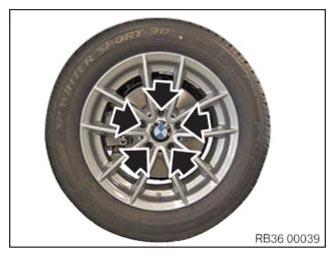

Join and tighten the lug bolts (arrows).

TIGHTENING TORQUE SPECIFICATION

Lug bolts
M 14/Key range 17 Screw in the lug bolts and tighten them crosswise and evenly by hand to center the rim. Tighten lug bolts to the prescribed tightening torque with a calibrated torque wrench in a crosswise sequence. Check all the lug bolts in the same order or retighten to the prescribed tightening torque again. Tightening torque
tightening torque
140Nm Check 140Nm

Follow-up work:

Reset the RDC
