51 21 125 Removing and installing/replacing carrier for left or right outside door handle with lock cylinder

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove FRONT OUTSIDE HANDLE
Remove DOOR LOCK on front door

Release screws (1).

Tightening torque 51 21 15AZ .

Unclip outside door handle carrier (2) at catch (3).

Remove outside door handle carrier (2) from door (4).

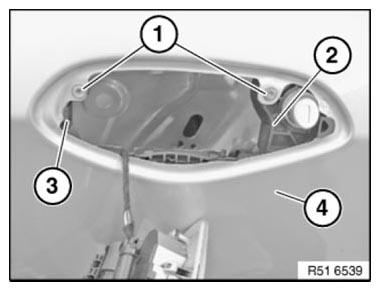

Fig 1: Identifying Door With Outside Door Handle Carrier, Catches And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
