51 21 090 Removing and installing/replacing door lock in left or right front door

Necessary preliminary tasks

• Remove FRONT DOOR WINDOW GLASS

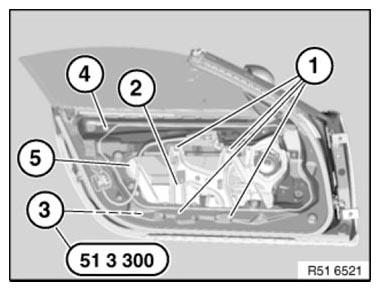

Release screws (1) on H-strut.

Tightening torque 51 21 13AZ .

Remove H-strut (2).

Release screw (3) with special tool 51 3 300.

Tightening torque 51 21 14AZ .

Release screw (4).

Tightening torque 51 21 14AZ .

Window rail (5) remains in door.

Fig 1: Removing Screw Using Special Tool (51 3 300)

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect plug connection (2) at tabs (1).

Disengage Bowden cable (3) from door lock (4).

Unclip lock knob control rod (5).

Fig 2: Identifying Plug Connection With Tabs, Bowden Cable, Door Lock And Control Rod

Courtesy of BMW OF NORTH AMERICA, INC.

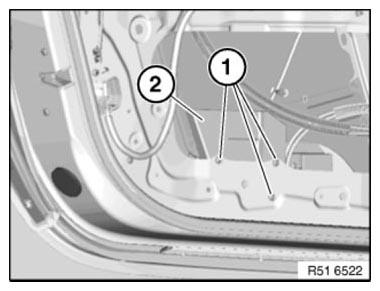

Release screws (1).

Door crashpad (2) remains in door.

Fig 3: Identifying Door Crashpad With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 51 21 1AZ .

Remove door lock (2) from door (3).

Fig 4: Identifying Door With Lock And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

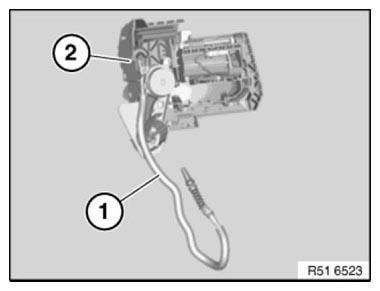

Disengage Bowden cable (1) from door lock (2).

Fig 5: Identifying Bowden Cable With Door Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Seal (1) on door lock (2) must not be damaged.

Fig 6: Identifying Seal On Door Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

• Install door lock and insert screws (1), do not tighten down.
• Slide special tool 51 2 190 into opened rotary striker until striker engages in first stage

Fig 7: Sliding Special Tool (51 2 190) Into Opened Rotary Striker

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

• Pre-tension door lock (1) with knurled screw (2) until special tool 51 2 190 just contacts corner points (3)

Fig 8: Installing Door Lock Using Special Tool (51 2 190)

Courtesy of BMW OF NORTH AMERICA, INC.

Door lock seal must rest uniformly on inner door panel (water ingress).

• Tighten down door lock screws, tightening torque 51 21 1AZ .
