51 21 170 Removing and installing or replacing outside door handle from left or right front door

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Operations on right side analogous to left side shown. Use graphics in a mirror-inverted way.

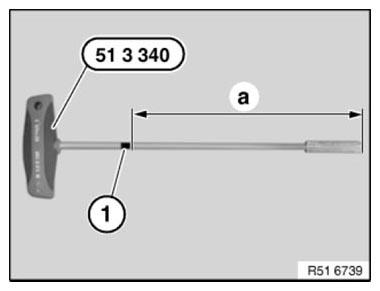

Measure dimension aeon special tool 51 3 340 and mark accordingly (1).

Fig 1: Identifying Dimension On Special Tool (51 3 340)

Courtesy of BMW OF NORTH AMERICA, INC.

"a" = 140 mm.

Lever seal plug (1) out of mounting hole (2).

NOTE: To avoid paintwork damage, use a suitable tool and tape off area around mounting hole.

Fig 2: Removing Seal Plug Out Of Mounting Hole

Courtesy of BMW OF NORTH AMERICA, INC.

For overview

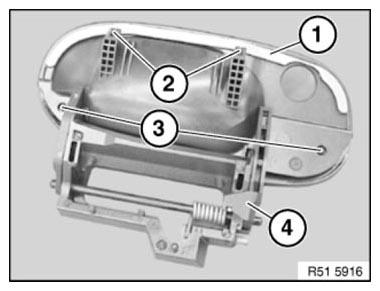

Carrier plate, outside door handle (1)
Locking plate (2)

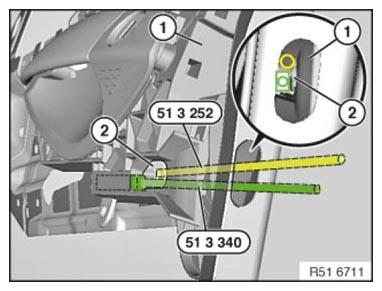

Positioning of special tools 51 3 252 and 51 3 340

Fig 3: Positioning Of Special Tools (51 3 252 And 51 3 340)

Courtesy of BMW OF NORTH AMERICA, INC.

For purposes of clarity, the following operations are shown with the component removed:

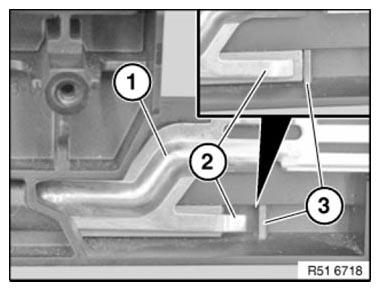

To raise retaining tab (2) of locking plate (1) over retaining rib (3)...

Fig 4: Identifying Retaining Tab Of Locking Plate And Retaining Rib

Courtesy of BMW OF NORTH AMERICA, INC.

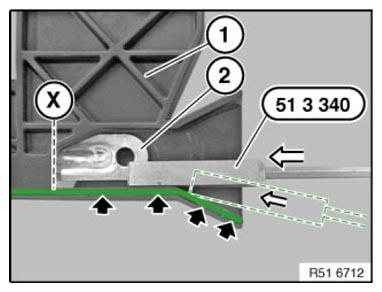

Insert special tool 51 3 340 from below, outside locking plate (2), along marked edge of carrier plate (1) up to point "X".

NOTE: If special tool 51 3 340 can only be slid in with difficulty from point "X" onwards, check the tool geometry per SI 01 32 09 (606).

Fig 5: Inserting Special Tool (51 3 340)

Courtesy of BMW OF NORTH AMERICA, INC.

For checking

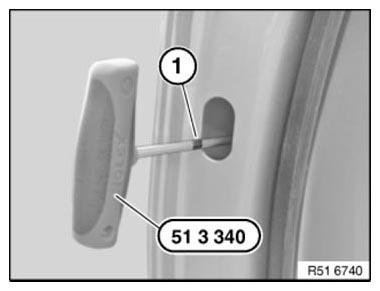

Marking (1) on special tool 51 3 340 is flush with outer door panel.

Fig 6: Identifying Marking On Special Tool (51 3 340)

Courtesy of BMW OF NORTH AMERICA, INC.

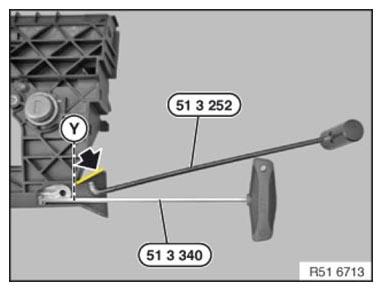

Insert special tool 51 3 252 from above, as illustrated, along marked edge. Screw in tool hook inwards no later than at point "Y".

Fig 7: Inserting Special Tool (51 3 252)

Courtesy of BMW OF NORTH AMERICA, INC.

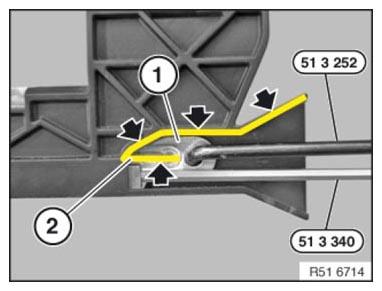

Continue to insert special tool 51 3 252 along marked edge. Here the special tool hook recedes into recess (2) of locking plate (1).

By pulling back, (see line guidance) special tool 51 3 252 engages in bore hole of locking plate (1).

Fig 8: Inserting Special Tool (51 3 252)

Courtesy of BMW OF NORTH AMERICA, INC.

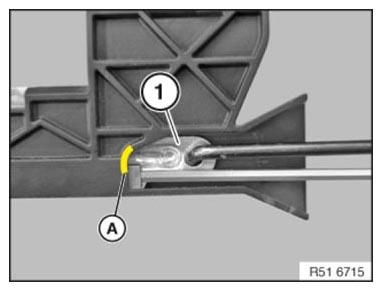

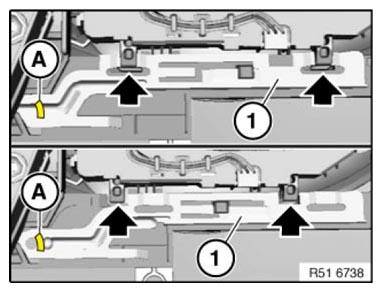

Slide locking plate (1) with special tool 51 3 252 inwards up to stop "A".

Installation:

Special tool 51 3 340 is not needed for installation.

Locking plate retaining tab (1) must lock. It must no longer be possible to push locking plate (1) inwards.

Fig 9: Sliding Locking Plate Using Special Tool (51 3 252)

Courtesy of BMW OF NORTH AMERICA, INC.

Here locking plate (1) releases retaining hooks (arrowed) of outer door handle.

Fig 10: Identifying Locking Plate

Courtesy of BMW OF NORTH AMERICA, INC.

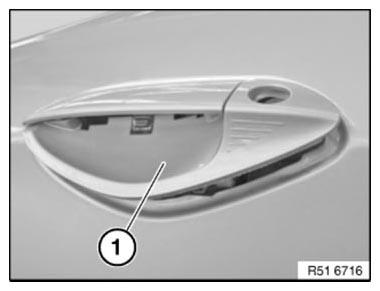

Lever out outer door handle (1) first at bottom. Then feed out at an angle towards bottom.

Installation:

Rotary striker lock must be open to enable outer door handle (1) to be correctly fed in. Ensure correct installation position.

Fig 11: Identifying Outer Door Handle

Courtesy of BMW OF NORTH AMERICA, INC.

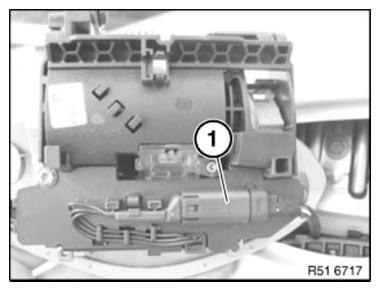

Unfasten plug connection (1) and disconnect.

Fig 12: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts on outer handle (4) must not be damaged or missing (graphic similar):

Seal
Guide
Rubber mount

Fig 13: Identifying Outer Handle With Seal, Guide And Rubber Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Carry out function check with door open.

To do so, close rotary striker lock by hand.
