51 47 314 Removing and installing/replacing carpet for passenger compartment

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove SEATS
Remove footwell side trim panels . See 5143075 REMOVING AND INSTALLING/REPLACING SIDE TRIM PANEL, FOOTWELL, ON A-PILLAR, RIGHT or 5143070 REMOVING AND INSTALLING/REPLACING SIDE TRIM PANEL, FOOTWELL, ON A-PILLAR, LEFT on left and right
Remove HEATER/AIR CONDITIONER
Remove ACCELERATOR PEDAL MODULE
Remove LOWER PARTITION TRIM PANEL

Replacement

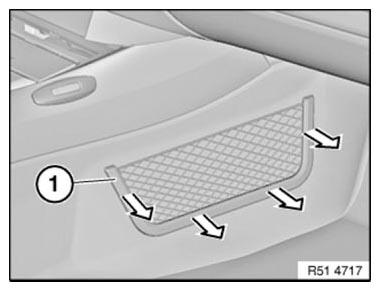

Unclip footwell net (1) on front passenger side.

Fig 1: Removing Footwell Net

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace damaged retaining clips.

Fig 2: Identifying Damaged Retaining Clips

Courtesy of BMW OF NORTH AMERICA, INC.
