51 43 070 Removing and installing/replacing side trim panel, footwell, on A-pillar, left

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove FRONT INNER ENTRANCE COVER STRIP
Remove TRIM PANEL FOR PEDAL ASSEMBLY .

Release screw (1).

Remove hood/bonnet actuating lever (2) in direction of arrow from panel (3).

Fig 1: Removing Hood/Bonnet Actuating Lever From Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Detach mucket See 5170... FITTING SEALS or 5171000 REMOVING AND INSTALLING/REPLACING SEAL ON FRONT DOOR, LEFT OR RIGHT (2) in area of trim (5).

Release screw (1).

Unclip panel (5) in direction of arrow from retaining points (4).

If necessary, unlock plug connection of switch (3) and disconnect.

Remove trim (5).

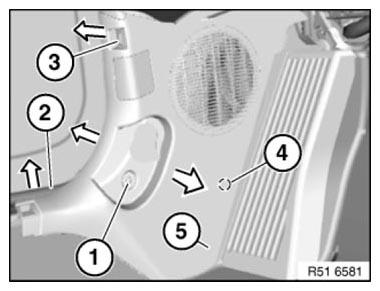

Fig 2: Removing Panel From Retaining Points

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, lever out clips (1) remaining in bores.

If necessary, replace faulty clips (1).

Preinstall clip (1) in trim (2).

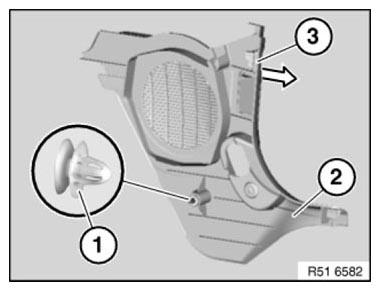

Fig 3: Removing Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Press catches and remove switch (3) in direction of arrow.
