51 43 075 Removing and installing/replacing side trim panel, footwell, on A-pillar, right

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove FRONT INNER ENTRANCE COVER STRIP
Remove TRIM FOR INSTRUMENT PANEL, BOTTOM LEFT

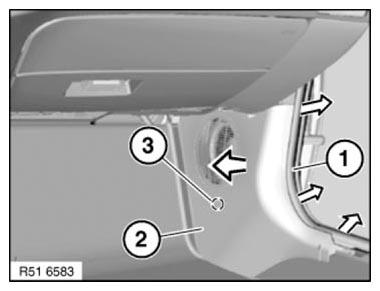

Detach mucket See 5170... FITTING SEALS or 5171000 REMOVING AND INSTALLING/REPLACING SEAL ON FRONT DOOR, LEFT OR RIGHT (1) in area of trim (2).

Unclip panel (2) in direction of arrow at retaining points (3) and remove.

Fig 1: Removing Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, lever out clips (1) remaining in bores.

If necessary, replace faulty clips (1).

Preinstall clip (1) in trim (2).

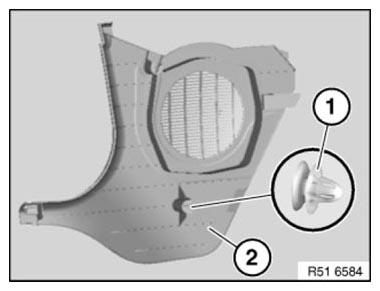

Fig 2: Identifying Clip On Trim

Courtesy of BMW OF NORTH AMERICA, INC.
