51 46 020 Removing and refitting/replacing left or right mounting for rear storage shelf

Necessary preliminary tasks:

Disconnect plug connection (1) from speaker.

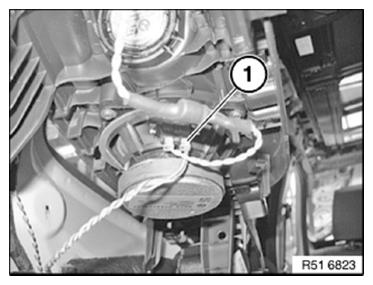

Fig 1: Identifying Speaker Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Open plastic rivet (2) and remove.

Unclamp mounting (5) at the back (3).

Unhook mounting (5) from bracket (4).

Installation note:

Position mounting (5) correctly (arrow).

Replace defective clamp (3).

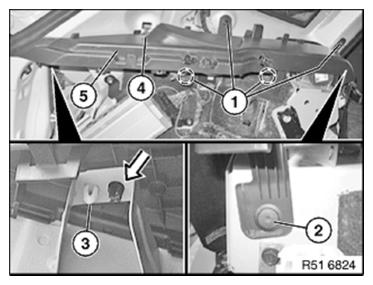

Fig 2: Identifying Mounting, Screws, Rivets, And Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

Unthread seat belt (1) from mounting (2).

Remove mounting (2).

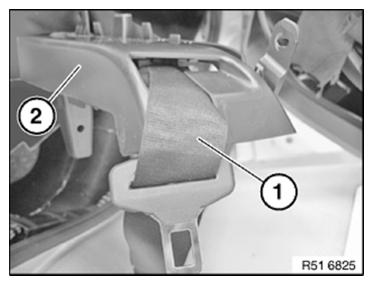

Fig 3: Identifying Seat Belt And Mounting

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

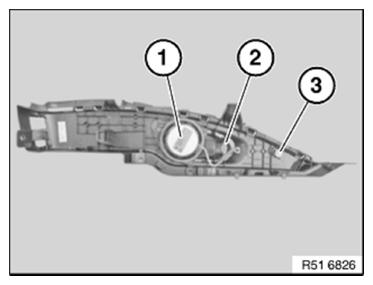

Fig 4: Identifying Mid-Range Speaker, Tweeter And Retaining Clip

Courtesy of BMW OF NORTH AMERICA, INC.
