65 13 195 Removing and installing/replacing rear treble speaker (in rear shelf)

Necessary preliminary tasks:

• Remove LUGGAGE COMPARTMENT WHEEL ARCH PANEL ON LEFT .

Disconnect plug connection (1).

Unlock retaining lugs.

Remove tweeter (2).

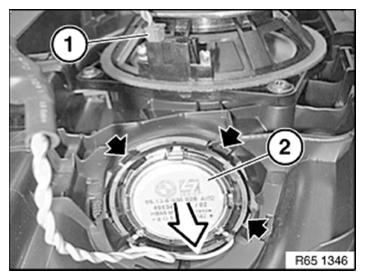

Fig 1: Removing Tweeter

Courtesy of BMW OF NORTH AMERICA, INC.
