65 13 188 Removing and installing/replacing rear mid-range speaker (fixture for storage shelf)

Necessary preliminary tasks:

• Remove luggage compartment wheel arch panel. See REMOVING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM or REMOVING LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM .

Disconnect plug connection (1).

Secure speaker (3) from falling.

Unfasten screws (2).

Remove speaker (3).

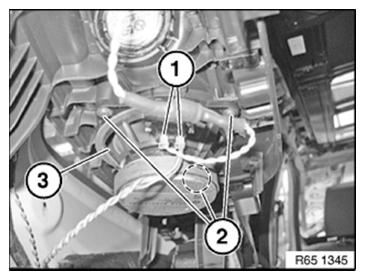

Fig 1: Identifying Speaker, Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
