61 31 321 Removing and installing radio and A/C control panel (for vehicles equipped with CID)
Special tools required:
NOTE:
The following repair instructions apply in the case of vehicles not equipped with CID:
- Removing and installing the CONTROL PANEL OF THE HEATING AND AIR CONDITIONING SYSTEM
- Removing and installing RADIO
IMPORTANT:
Risk of damage!
A hard disk is installed in the Car Information Computer (CIC).
Carry out mechanical work on the CIC and adjacent components with care.
Avoid subjecting the CIC to vibration/shocks.
IMPORTANT:
Read and comply with NOTES ABOUT PROTECTION FROM ELECTROSTATIC DISCHARGE .
IMPORTANT:
Carry out installation in a dust-free workshop area only.
To avoid damage, do not touch or dirty the display.
Necessary preliminary tasks:
Remove the CENTER FRESH AIR GRILLE .

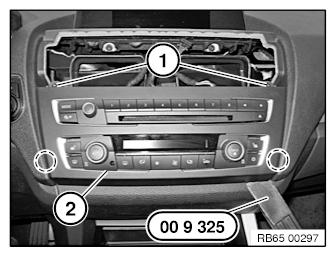

Release screws (1).
Carefully unlock the radio and air conditioning control panel (2) at the marked points, using special tool 00 9 325 .
Slightly pull out the radio and air conditioning control panel (2) and disconnect the associated plug connection.
Remove radio and A/C control panel (2).
