65 11 080 Removing and installing/replacing radio receiver

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

IMPORTANT: Carry out installation in a dust-free workshop area only.
To avoid damage, do not touch or dirty the display field.

Necessary preliminary work:

Release screws (1).

Pull out radio receiver (2) and unlock and disconnected associated plug connections.

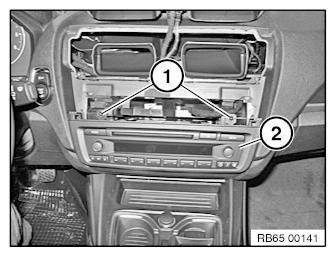

Fig 1: Identifying Radio Receiver And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
