64 11 377 Removing and installing control panel of heater/air conditioning system

IMPORTANT: Read and comply with notes on protection against electrostatic discharge (ESD PROTECTION) .

IMPORTANT: Carry out installation in a dust-free workshop area only.
To avoid damage, do not touch or dirty the display field.

Necessary preliminary tasks:

Release screws (1).

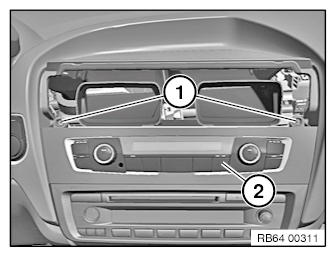

Fig 1: Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock locking wedges (1) with a suitable tool (e.g. screwdriver - 3 mm blade) in upward direction.

Installation note:

Locking wedges (1) must be felt to engage.

Make sure locking wedges (1) are securely seated.

Unlock associated plug connection and disconnect.

Remove control panel for heater - air conditioning system (2).

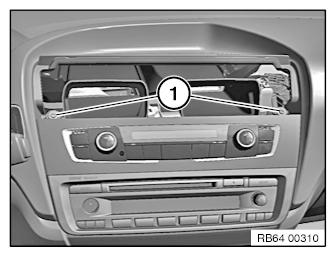

Fig 2: Air Conditioning System And Locking Wedges

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Locking wedges (1) must not be damaged.

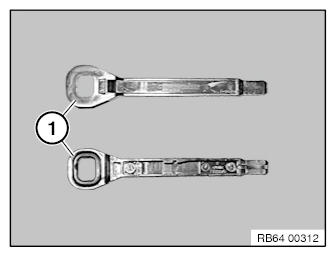

Fig 3: Lock Wedges

Courtesy of BMW OF NORTH AMERICA, INC.
