51 16 160 Removing and installing/replacing center console cover

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Necessary preliminary tasks:

• Remove DECORATIVE TRIM ON CENTER CONSOLE

Manual gearbox only:

• Remove GAITER

With automatic transmission only:

• Remove COVER FOR PRESELECTOR LEVER

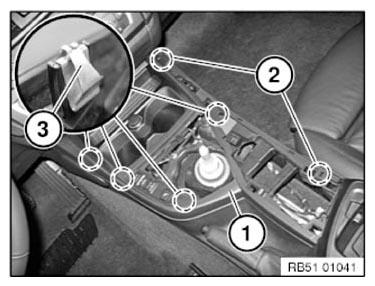

Release cover (1) at latch mechanisms (2) and clamps (3).

Slightly raise the cover (1) and disconnect associated plug connection.

Feed out cover (1) toward the top/rear.

Installation note:

The following parts must not be damaged or missing:

• Guides (1)
• Latch mechanisms (2)
• Clamps (3)

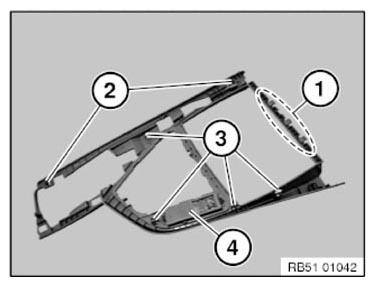

  Fig 2: Guides, Latch Mechanisms And Clamps

  Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Convert the OPERATING UNIT (4).
