51 16 145 Removing and installing (replacing) decorative trim at center console
Special tools required:
When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

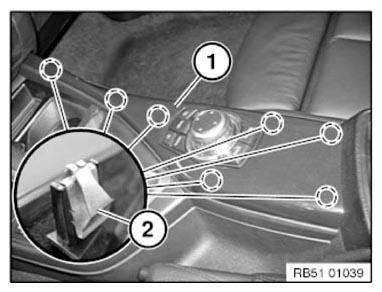

Loosen cover (1) with special tool 00 9 327 from clamps (2).
If necessary, unlock associated plug connections and disconnect.
Feed out cover (2) to the top/rear.
Installation note:

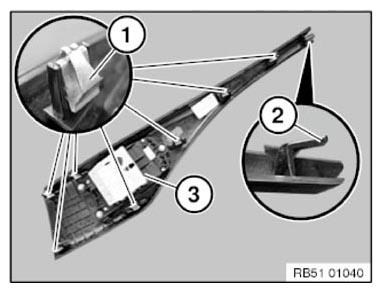

Clamps (1) and guide (2) must not be damaged or missing.
Feed guide (2) correctly into center console.
Replacement (depending on version):
Modify CONTROLLER (3).
