51 31 011 Replace windscreen
Special tools required:
Attention!
The following notes form the basis for these repair instructions and must be adhered to at all times:
- Notes on window bonding. See 41 00... SAFETY AT WORK , 41 00... INFORMATION ON VEHICLE PROTECTION , 51 31... MATERIALS FOR BONDING WINDOW and 99 00... TOUCHING UP PAINTWORK DAMAGE .
- GENERAL PROCEDURE for dismantling/installing bonded window glass
Removal is performed with ROLL OUT 2000 or SPIDER .
The following new parts/consumable are required (sourcing reference BMW Parts Department).
| Material | Quantity |
|---|---|
| Windscreen | 1 |
| Cover, windscreen | 1 |
| Spacer buffer 5x5x20 mm | 5 |
| Small repair kit | 1 |
| Sika Activator 205 (for windscreen cover) | 1 |
| Wire from Roll Out 2000 | 9 m |
| Expanding foam tape | 1 |
Necessary preliminary tasks:
- Remove COWL PANEL COVER
- Remove INSIDE MIRROR
- Remove TRIM PANEL FOR ROOF PILLAR (A-pillar) left/right
Depending on version:
Unplug plug connections (1 to 3).
Do not remount the rain-light solar and condensation sensor until after the windscreen is disassembled.
Remove CAMERA .
Slide wire/cord out of ROLL OUT 2000 /SPIDER along the line (1) through the adhesive bead (2).
Cut out windscreen. See 5131... REMOVE WINDSCREEN WITH "ROLL OUT 2000" or 5131... REMOVING WINDOWS WITH A "SPIDER" .

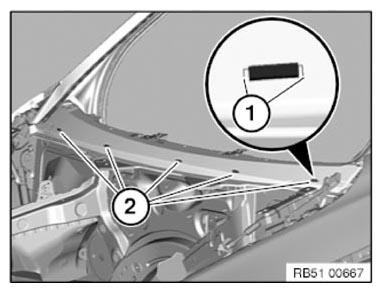

Fitting spacer buffers (spacers):
Completely remove old spacer buffers (2).
Position the new spacer buffers (2) in the center of the embossed marks (1) and bond.
Observe NOTES on component-bonding with adhesive tape!
Stick expanding foam tape onto the marked area (1) on the windscreen.
Install the COVER/RUBBER FRAME (1) for the windscreen.
Pre-treat adhesive area with Sika-Aktivator205.
Remove the RAIN/LIGHT/SOLAR AND CONDENSATION SENSOR and immediately install on a new windscreen.

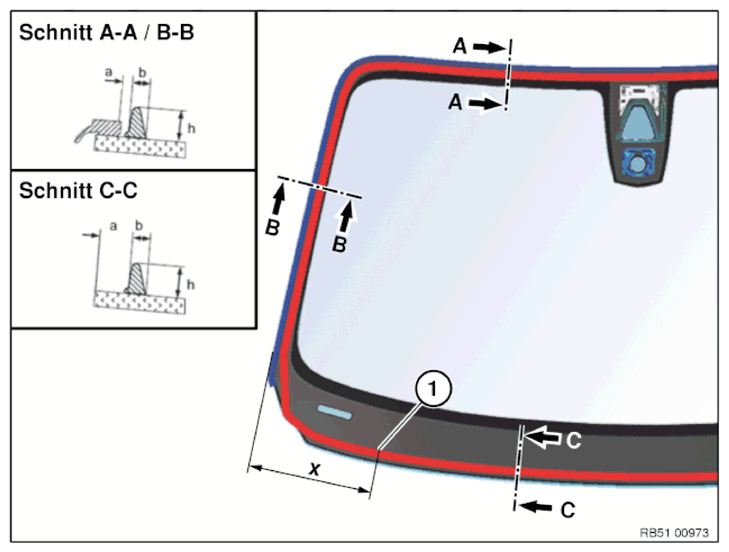

Overview of windscreen bonding:
| Cut | A - A/B - B | C - C |
|---|---|---|
| a [mm] = Position adhesive bead | 1 + 1 | 18 + 1 |
| b [mm] = Width adhesive bead | 8 ±2 | 8 ±2 |
| h [mm] = Height adhesive bead | 12-2 | 12-2 |
x = approx. 300 mm (bead joint distance (1) to windscreen outer edge)
PREPARE the body and windscreen.
Perform the following steps carefully on the windscreen (1) using suction cup (51 3 010):
- feed in on the bottom of the lower front side wall
- Position at top
- Align sides evenly
- press upwards until sealing rests evenly on roof and apply pressure
- secure in terms of height in this position at top with two yellow plastic adhesive tapes (2)
Preload on top of windscreen to prevent wind noise:
Windscreen (1) must be lower than roof outer skin (2). This is the only way to prevent wind noises.
Position special tool 51 0 010 in middle of vehicle depending on dimension (A) and check underprotrusion of windscreen (1).
Windscreen underprotrusion (A):
A = 2.8 ± 1 mm
X = Measurement stages 1... 4 mm
Only with camera-based driver support systems:
Carry out camera calibration via diagnosis system.
Under Service Functions menu:
- Driver assistance
- Camera-based driver support systems
- Calibration of camera-based driver support systems
- Camera-based driver support systems
