66 33 010 Removing and installing/replacing ultrasound sensor for parking assistant

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Risk of damage!

Repair work in area (1) is not permitted.

REPLACE SIDE WALL .

Fig 1: Identifying Side Wall Area

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Example shown on F10:

IMPORTANT: There must be no pressure exerted on PMA sensor surface (1)!

Fig 2: Identifying PMA Sensor Surface

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary tasks:

REMOVE FRONT LEFT OR RIGHT SIDE REPEATER/TRIM STRIP .

NOTE: Front side panel area all around front auxiliary turn indicator with parking maneuvering assistant sensor must not be damaged due to the measuring accuracy!

IMPORTANT: Risk of damage!

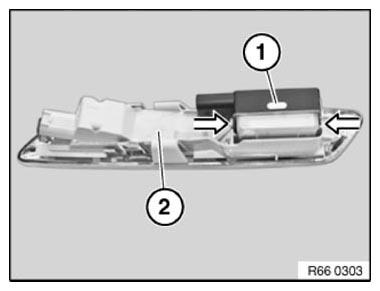

Carefully unlock catches with a suitable tool . Remove parking maneuvering assistant sensor (1) from auxiliary turn indicator (2) .

Installation note:

Catches must lock correctly!

Fig 3: Removing Parking Maneuvering Assistant Sensor From Auxiliary Turn Indicator

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage!

Decoupling ring must not be crushed.

Installation note:

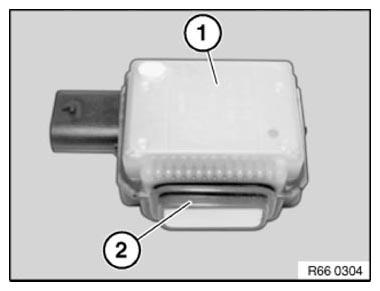

Moisten decoupling ring (2) prior to fitting with approved anti-friction agent.

Make sure decoupling ring (2) is correctly seated on parking maneuvering assistant sensor (1)!

Fig 4: Identifying Decoupling Ring Seated On Parking Manoeuvring Assistant Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

After installation, check decoupling ring (1) is correctly seated!

Fig 5: Identifying PMA Sensor Surface

Courtesy of BMW OF NORTH AMERICA, INC.
