41 35 081 Removing And Installing Front Side Wall On Left

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Observe 41 00... BODY GAP DIMENSIONS .

IMPORTANT: Do not damage adjoining body components.

Necessary preliminary tasks:

Remove wheel arch covers . See 51 71 038 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT WHEEL ARCH COVER (FRONT SECTION) or 51 71 039 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT WHEEL ARCH COVER (REAR SECTION)
Depending on version: Unlock and disconnect plug connection for SIDE REPEATER and/or PMA
Remove TRIM PANEL FOR COVER ON SIDE MEMBER
Partially loosen BUMPER PANEL on the side
Remove SEAL MOUNTING for engine compartment lid

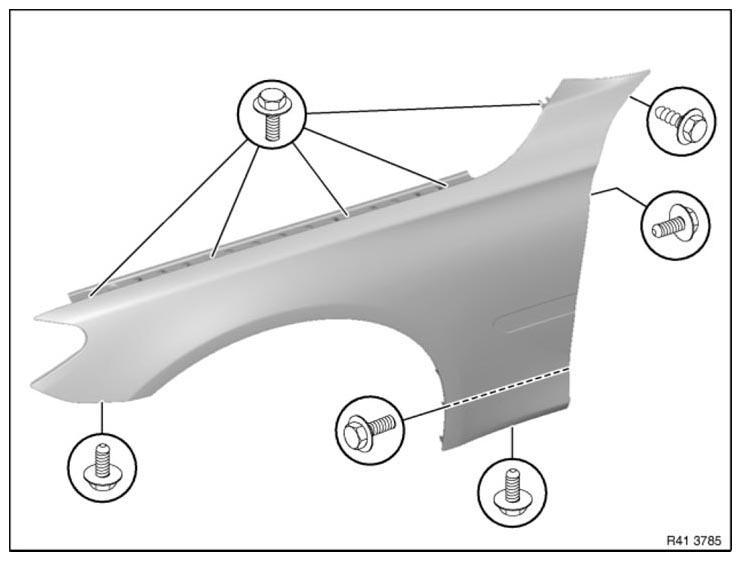

Fig 1: Identifying Front Side Wall On Left Mounting Screws
Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

Tightening torque 41 35 1AZ .

Tightening torque 41 35 2AZ .

Replacement:

Apply additional sealant to inside of front panel in area (1). Apply to area (1) based on shape of side wall to be replaced.

Material: SEALANT D1 (sourcing reference via BMW Parts Department).

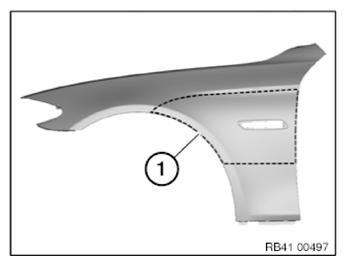

Fig 2: Identifying Front Panel Sealant Applying Area

G05503434

Courtesy of BMW OF NORTH AMERICA, INC.

Only vehicles with PMA:

Repair work in area (1) is not permitted.

Replace side wall.

Fig 3: Identifying Side Wall Area

G09878829

Courtesy of BMW OF NORTH AMERICA, INC.

For replacement , only national-market version Japan:

Replace WHEEL ARCH TRIM (1).

Systematic representation.

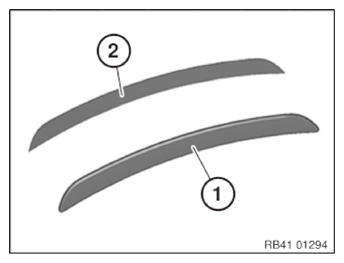

Fig 4: Identifying Wheel Arch Trim

G09878830

Courtesy of BMW OF NORTH AMERICA, INC.
