63 13 200 Removing and installing/replacing front left or right auxiliary direction indicator

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 322

IMPORTANT: Risk of damage in vehicles with parking assist (PMA)!

IMPORTANT: There must be no pressure exerted on PMA sensor surface (1)!

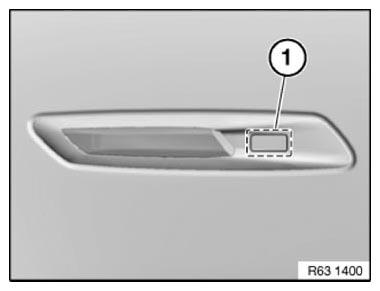

Fig 1: Identifying PMA Sensor Surface

Courtesy of BMW OF NORTH AMERICA, INC.

Lift front auxiliary direction indicator lamp (1) with special tool 00 9 322 . Release additional catches in the center in the direction of arrow using a suitable tool.

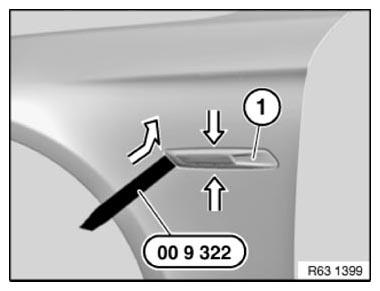

Fig 2: Identifying Special Tool (00 9 322)

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections (1) and disconnect.

Remove front auxiliary turn signal lamp (2).

NOTE: The number of plug connections may vary, depending on the vehicle outfitting.

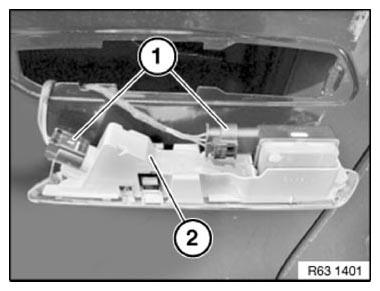

Fig 3: Identifying Plug Connections And Signal Lamp

Courtesy of BMW OF NORTH AMERICA, INC.
