63 21 057 Replacing a socket housing for left or right rear light (rear lid)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (EXTERIOR LIGHTS) .

Necessary preliminary tasks:

Partially removing TRIM FOR REAR LID

Unfasten plug connection (1) and disconnect.

Unlock latch mechanisms (2) and remove rear light socket housing (3).

Installation note:

Retaining lugs must not be damaged.
Make sure rear light socket housing (3) is correctly seated.

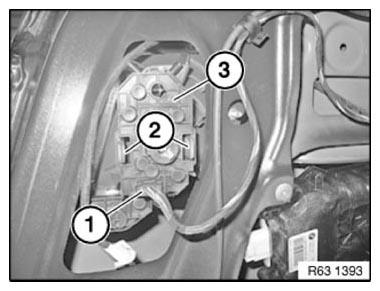

Fig 1: Identifying Plug Connection, Latch Mechanisms And Rear Light Socket Housing
Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Convert BULBS , replace if necessary.
