51 49 000 Removing and installing or replacing trim for rear lid

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove LUGGAGE COMPARTMENT LIGHT
Remove SWITCH FOR AUTOMATIC REAR LID ACTUATION
Feed out rear lid emergency release mechanism

Release screws (1).

Open tool box (2), disengage retaining strap and feed out tool box (2).

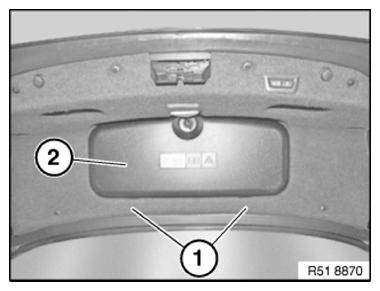

Fig 1: Identifying Tool Box Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release clips (2). (Check for damage, replace if necessary)

Release expanding rivet at marked points.

Remove panel for tailgate (1).

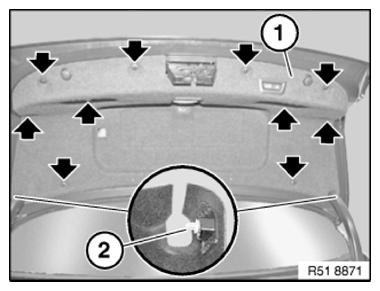

Fig 2: Locating Tailgate Panel Clips

Courtesy of BMW OF NORTH AMERICA, INC.
