63 99 312 Replacing bulb(s) for left or right rear light (rear lid)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Follow instructions for HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Necessary preliminary tasks:

Remove SOCKET HOUSING FOR REAR LIGHT

Pull bulb holder (1) or bulb holder (2) out of socket housing (3) in direction of arrow and change corresponding bulb.

NOTE:

Bulb for reversing light
Bulb for rear fog light

Installation note:

Note BULB TYPE .

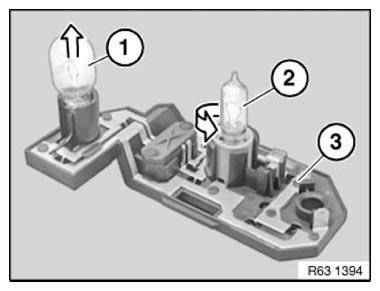

Fig 1: Pulling Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.
