52 24 408 Replacing backrest cover for left or right rear seat

Special tools required:

• 52 0 050

Necessary preliminary tasks:

• Remove ARMREST
• Remove GUIDE SLEEVES
• Remove rear panel

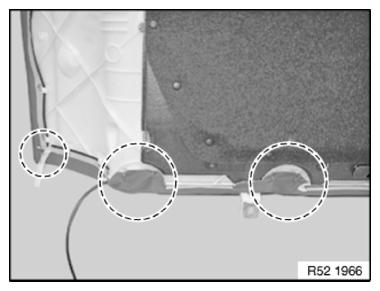

Detach backrest cover (1) in marked area from backrest frame.

Fig 1: Removing Backrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

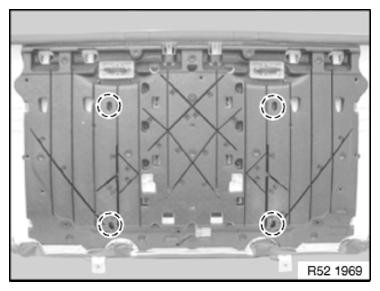

Release all retainers in marked area.

Remove all remnants of retainers

Installation:

Insert new clamp with special tool 52 0 050 and bend closed.

Fig 2: Identifying Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

Detach welt (1) of backrest cover in marked area of backrest frame.

Fig 3: Removing Backrest Cover Welt

Courtesy of BMW OF NORTH AMERICA, INC.

Detach trim wire of upholstery in the marked area of backrest frame.

Remove backrest cover with padding from backrest frame.

Fig 4: Identifying Trim Wire Of Upholstery In Marked Area Of Backrest Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Detaching cover from padding:

• Release all retainers in marked area
• Remove cover from padding
• Remove remaining retainers from cover and padding.
  Fig 5: Identifying Retainers From Cover And Padding

  Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert new clamp (2) with special tool 52 0 050 and bend closed.

1. Padding
2. Retainer
3. Trim wire in padding
4. Trim wire in backrest cover
5. Backrest cover
   Fig 6: Inserting Clamp With Special Tool (52 0 050)

   Courtesy of BMW OF NORTH AMERICA, INC.

Replacing cover:

• Remove all trim wires from cover
• If necessary, cut pockets in new cover for trim wires
• Push trim wires into pockets
  Fig 7: Identifying Trim Wires From Cover

  Courtesy of BMW OF NORTH AMERICA, INC.
