52 24... Removing and installing/replacing all guide sleeves for rear head restraints
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove BACKREST for rear seat
- Remove head restraint . See 52 24 388 REMOVING AND INSTALLING/REPLACING REAR MIDDLE HEAD RESTRAINT or 52 24 390 REMOVING AND INSTALLING OR REPLACING LEFT OR RIGHT REAR HEAD RESTRAINT from rear seat

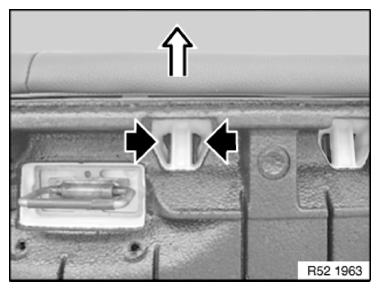

Unlock detent lugs of the guide sleeves and remove by lifting upwards.
