52 24 030 Removing and installing complete armrest for rear seat backrest

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Unclip cover (1) towards front.

Installation:

Replace faulty clips (2).

Fig 1: Removing Rear Seat Backrest Cover
G04727330Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque: 52 24 5AZ .

Remove armrest (2) with support structure upwards.

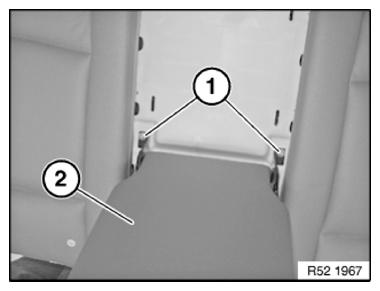

Fig 2: Identifying Rear Seat Backrest Armrest And Screws
G09928216Courtesy of BMW OF NORTH AMERICA, INC.
