52 14 017 Removing and installing/replacing seat frame for driver's seat

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove DRIVER'S SEAT .
Remove seat fabric . See 52 16 402 REPLACING SEAT COVER FOR DRIVER'S SEAT (SPORT) , 52 17 402 REPLACING SEAT COVER FOR DRIVER'S SEAT (COMFORT) or 52 14 402 REPLACING SEAT COVER FOR DRIVER'S SEAT (NORMAL/ELECTRIC)
Remove backrest frame . See 52 17 032 REMOVING AND INSTALLING/REPLACING BACKREST FRAME FOR DRIVER'S SEAT or 52 14 031 REMOVING AND INSTALLING/REPLACING BACKREST FRAME FOR LEFT OR RIGHT DRIVER'S SEAT on front seat

Release all clips.

Installation:

If necessary, replace faulty clips.

Feed wiring harness (1) out of seat frame.

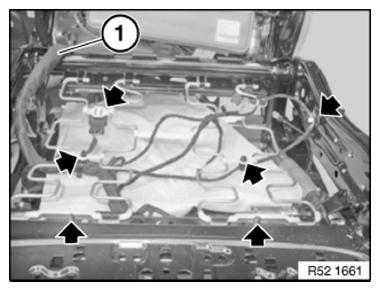

Fig 1: Locating Wiring Harness Of Seat Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Open rivets (1) on left and right.

Remove securing strips (2) on left and right.

Release screws (3).

Tightening torque 52 10 6AZ .

Remove seat frame from seat rail.

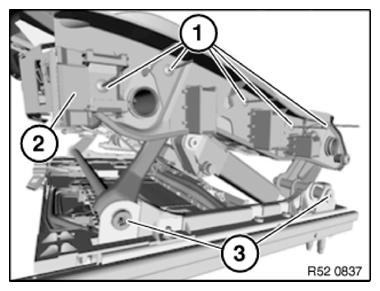

Fig 2: Identifying Left/Right Rivet, Securing Strips And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The new seat frame part contains all the drives.
