52 14 402 Replacing seat cover for driver's seat (normal/electric)

Special tools required:

• 52 0 050

Necessary preliminary tasks:

• Remove INNER COVER  on front seat
• Remove SUPPORT FOR OUTER COVER
• Remove REAR PANEL  on front seat backrest

Unfasten plug connection (1) and disconnect.

Feed wiring harness out of seat mechanism.

Fig 1: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out left and right clips (1).

Fig 2: Identifying Clips

Courtesy of BMW OF NORTH AMERICA, INC.

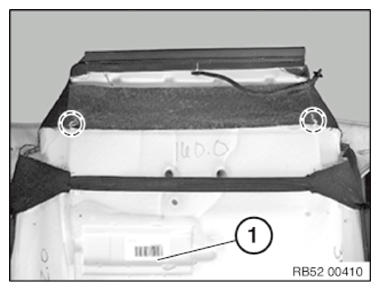

Drill out rivet heads (1) left and right.

Detach seat cover tab from seat frame.

Installation note:

Completely remove rivet residue.

Fig 3: Identifying Left/Right Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

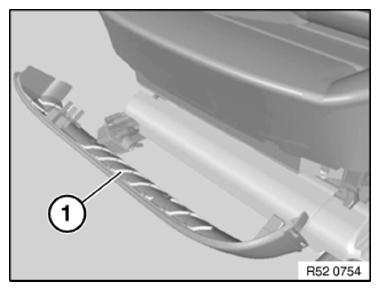

Detach welt (1) from seat mechanism.

Fig 4: Detaching Welt From Seat Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

Detach welt (1) from seat mechanism.

Fig 5: Detaching Welt From Seat Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

Release clamps in marked area.

Feed seat cover out of upholstery (1).

Fig 6: Identifying Seat Cover Out Of Upholstery

Courtesy of BMW OF NORTH AMERICA, INC.

Release all clamps in marked area of trim wires.

Remove seat cover from upholstery.

Fig 7: Identifying Seat Cover In Marked Area Of Trim Wires

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Bend new clamp (2) 52 0 050 closed with pliers.

1. Upholstery
2. Clamps
3. Welt in seat cover
4. Trim wire in upholstery
5. Seat cover

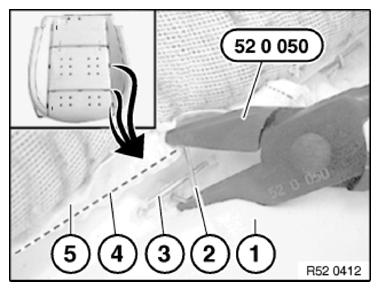

   Fig 8: Inserting Clamp With Special Tool (52 0 050)

   Courtesy of BMW OF NORTH AMERICA, INC.

Special tools required:

• 52 0 050

Necessary preliminary tasks:

• Remove DRIVER'S SEAT .
• Remove REAR PANEL  on front seat backrest
• Remove INNER COVER  on driver's seat
• Remove SWITCH COMBINATION

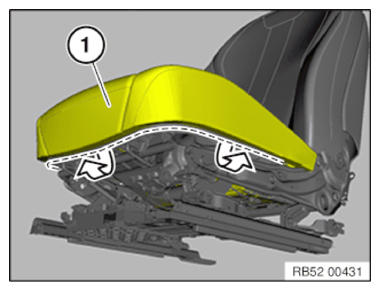

Remove cover (1) on front seat:

• Press clip on door side outwards
• Press clip on tunnel side upwards
• Pull cover (1) forwards out of seat mechanism

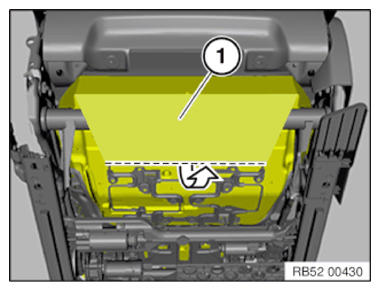

  Fig 1: Identifying Front Seat Cover

  Courtesy of BMW OF NORTH AMERICA, INC.

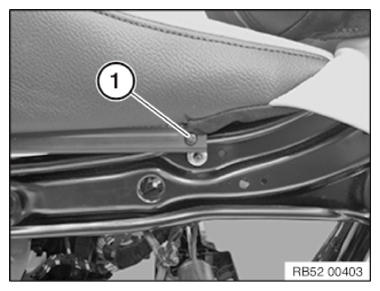

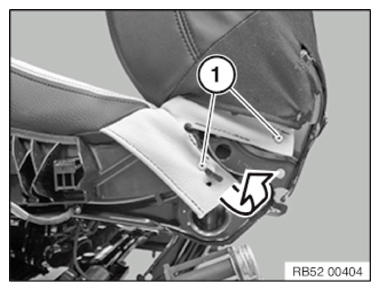

Unhook seat cover on at all attachment points (1).

Fig 2: Identifying Seat Cover Attachment Points

Courtesy of BMW OF NORTH AMERICA, INC.

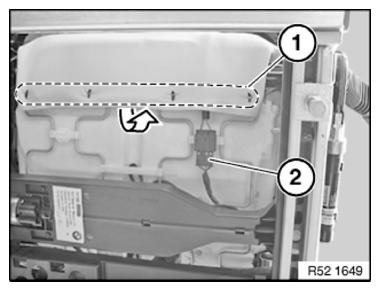

Unhook seat cover in marked area (1).

With seat heating only as optional equipment:

Disconnect plug connection (2).

Remove seat cover complete with upholstery.

Fig 3: Removing Seat Cover

Courtesy of BMW OF NORTH AMERICA, INC.

With climate control only as optional equipment:

Release plug connections (1) and disconnect.

Fig 4: Identifying Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

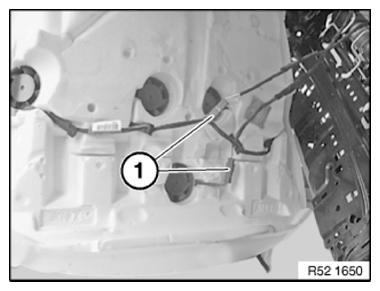

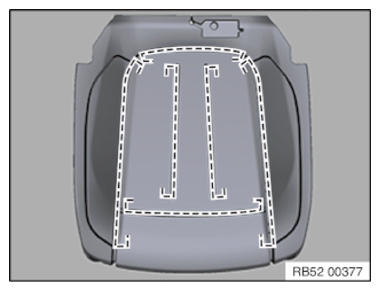

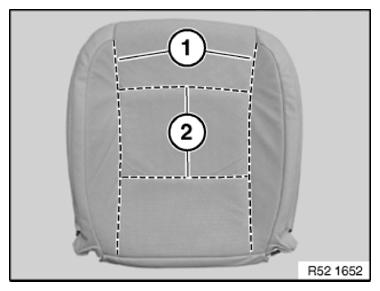

Detach all clamps in side area from longitudinal wires (1).

Pull trim wires (1) forward out of seat cover.

Carefully fold back seat cover and release clamps from cross-wires (2).

Remove seat cover from upholstery.

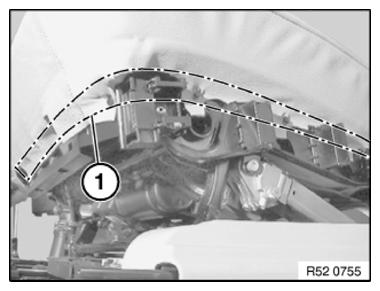

Fig 5: Identifying Trim Wires Of Seat Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Replace seat cover:

Pull trim wires out of seat cover.

Installation note:

Slide trim threads into new seat cover.

If necessary, cut mounting for trim threads.

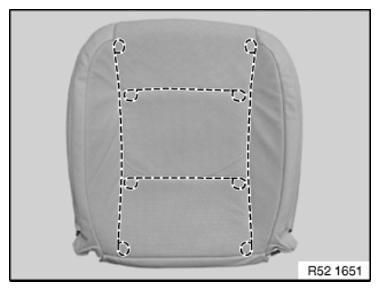

Fig 6: Identifying Trim Wires Of Seat Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

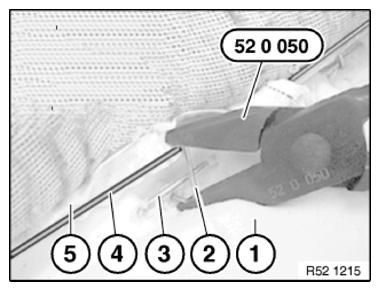

Bend new clamp (2) 52 0 050 closed with pliers.

1. Upholstery
2. Clamps
3. Trim wire in seat cover
4. Trim wire in upholstery
5. Seat cover
   Fig 7: Closing Bend Clamp With Pliers (52 0 050)
