52 17 023 Removing and installing/replacing adjusting unit for thigh support on left or right front seat

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove seat cushion . See 52 17 402 REPLACING SEAT COVER FOR DRIVER'S SEAT (COMFORT) or 52 17 404 REPLACING SEAT COVER FOR PASSENGER FRONT SEAT (COMFORT) on front seat

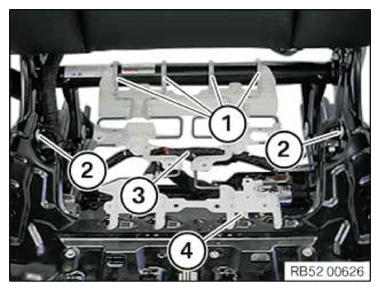

Detach spring set (1).

Release screws (2) with nuts.

Unclip wiring harness (3).

Unlock plug connection (4) and disconnect.

Fig 1: Identifying Spring Set, Wiring Harness And Screws

G09927877

Courtesy of BMW OF NORTH AMERICA, INC.

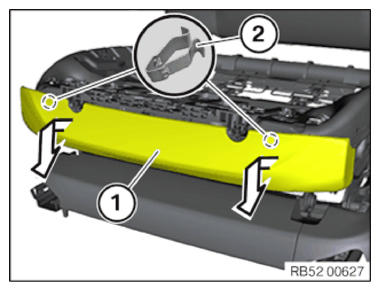

Release trim (1) on clamps (2) and remove trim (1) downwards.

Fig 2: Releasing Trim On Clamps

G09927878

Courtesy of BMW OF NORTH AMERICA, INC.

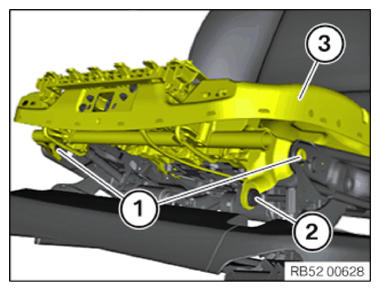

Release screws (1 and 2).

Remove thigh support (3).

Fig 3: Identifying Thigh Support And Screws

G09927879

Courtesy of BMW OF NORTH AMERICA, INC.

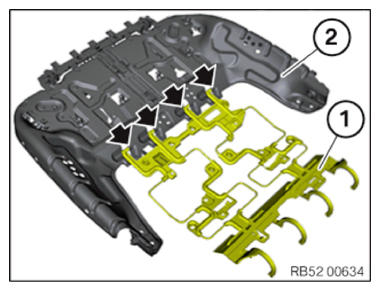

Detach spring set (1) from thigh support (2).

Fig 4: Locating Spring Set From Thigh Support

G09927880

Courtesy of BMW OF NORTH AMERICA, INC.
