52 17 404 Replacing seat cover for passenger front seat (comfort)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

52 0 050

Necessary preliminary tasks:

Remove INNER COVER on front seat
Remove SUPPORT FOR OUTER COVER
Remove both rear panels . See 52 17 202 REMOVING AND INSTALLING/REPLACING LOWER REAR PANEL ON LEFT OR RIGHT FRONT SEAT BACKREST , 52 17 200 REMOVING AND INSTALLING/REPLACING UPPER REAR PANEL ON LEFT OR RIGHT FRONT SEAT BACKREST or 52 17 205 REMOVING AND INSTALLING/REPLACING BOTH REAR PANELS ON LEFT OR RIGHT FRONT SEAT BACKREST (COMFORT) on front seat backrest

WARNING: Only US and Canadian version of front passenger seat (with CIS mat):
The CIS mat can only be removed in conjunction with the padding from the seat cover.
If CIS mat or padding is defective, both parts may only be replaced together.
Full operability can only be guaranteed with original BMW replacement parts.
After fitting the seat cover, the CIS mat must be enabled with the BMW PROGRAMMING SYSTEM .

Unfasten plug connection (1) and disconnect.

Feed wiring harness out of seat mechanism.

Fig 1: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out left and right clips (1).

Fig 2: Identifying Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Drill out rivet heads (1) left and right.

Detach seat cover tab from seat frame.

Installation note:

Completely remove rivet residue.

Fig 3: Identifying Left/Right Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Detach welt (1) from seat mechanism.

Fig 4: Detaching Welt From Seat Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

Detach welt (1) from seat mechanism.

Fig 5: Detaching Welt From Seat Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

Raise retaining lug in succession from A to D, pulling the thigh support (1) forward at the same time.

Fig 6: Pulling Thigh Support Forward

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Insert support for thigh support in correct position in the guide and lock.

Fig 7: Inserting Thigh Support In Correct Position In Guide And Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Detach welt (1) from metal tabs.

Fig 8: Detaching Welt From Metal Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

Detach welt from support for thigh support.

Fig 9: Detaching Welt From Support For Thigh Support

Courtesy of BMW OF NORTH AMERICA, INC.

Release clamps in marked area.

IMPORTANT: Remove all remnants of clamps from seat cover and upholstery.

Feed seat cover out of upholstery (1).

Fig 10: Identifying Seat Cover Out Of Upholstery

Courtesy of BMW OF NORTH AMERICA, INC.

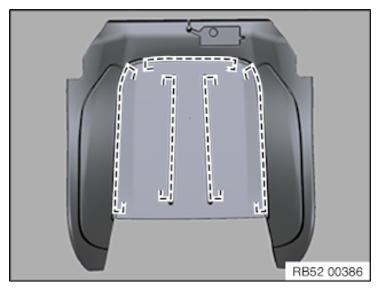

Release all clamps in marked area of trim wires.

Remove seat cover from upholstery.

IMPORTANT: Remove all remnants of clamps from seat cover and upholstery.

Fig 11: Identifying Clamps In Marked Area Of Trim Wires

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

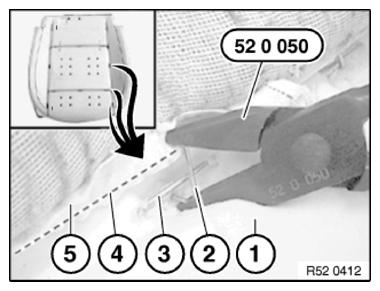

Bend new clamp (2) 52 0 050 closed with pliers.

Upholstery
Clamps
Welt in seat cover
Trim wire in upholstery
Seat cover

Fig 12: Bending Clamp With Pliers (52 0 050)
Courtesy of BMW OF NORTH AMERICA, INC.

Enabling seat occupancy detector (CIS mat):

Connect BMW PROGRAMMING SYSTEM
Encode airbag control unit
Delete fault memory if necessary
