21 52 500 Removing And Installing/Replacing Clutch Master Cylinder

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2016 BMW M5, 2016 BMW 535i, 2015 BMW M5, 2015 BMW 535i, and 2014 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: After completing work, bleed CLUTCH HYDRAULIC SYSTEM .

Necessary preliminary work:

Remove BEARING SUPPORT for foot pedal.

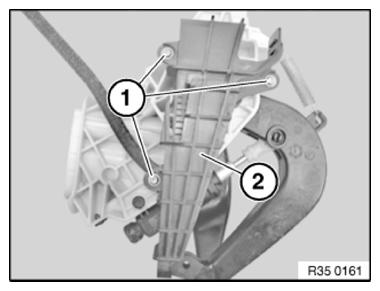

Release screws (1).

Take off holder (2).

Fig 1: Holder And Screws

G09915456

Courtesy of BMW OF NORTH AMERICA, INC.

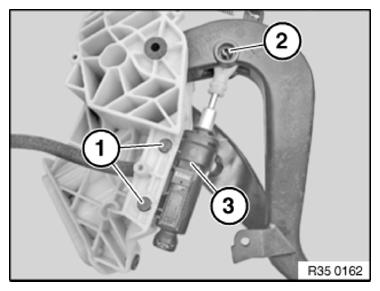

Undo bolts (1) and (2).

Installation note:

Renew bolts (1) and (2).

Remove clutch master cylinder (3).

Fig 2: Clutch Master Cylinder And Bolts

G09915118

Courtesy of BMW OF NORTH AMERICA, INC.

Detach supply hose (1) from clutch master cylinder.

Fig 3: Supply Hose From Clutch Master Cylinder

G04725961

Courtesy of BMW OF NORTH AMERICA, INC.

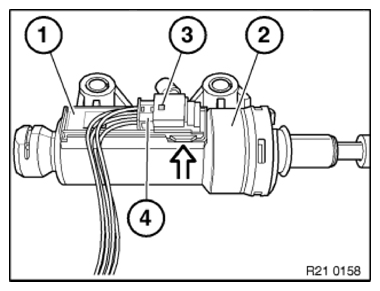

Lever clutch switch (1) out of clutch master cylinder (2) with a screwdriver.

Fig 4: Removing Clutch Switch Out Of Clutch Master Cylinder With Screwdriver

G09915120

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

The clutch switch is secured against incorrect installation.

The clutch switch must snap audibly into place.

Fig 5: Clutch Switch

G04725963

Courtesy of BMW OF NORTH AMERICA, INC.
