21 00 006 Bleeding Clutch Hydraulic System (Plastic Clutch Slave Cylinder)

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2016 BMW M5, 2016 BMW 535i, 2015 BMW M5, 2015 BMW 535i, and 2014 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove UNDERBODY PROTECTION .

Release expanding rivets (1).

Remove cover (2) for cowl panel.

Installation note:

Replace damaged expanding rivets.

Holders (3) must snap into place in suspension cross-brace when cover (2) is installed.

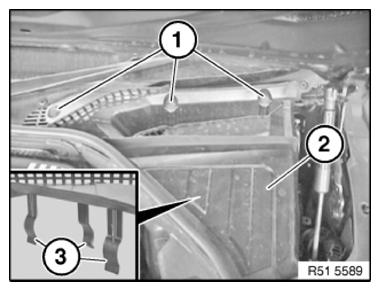

Fig 1: Cover For Cowl Panel, Expanding Rivets And Holders

G09915032

Courtesy of BMW OF NORTH AMERICA, INC.

Connect bleeder unit to brake fluid expansion tank.

IMPORTANT: Check relevant equipment manufacturer's operating instructions for each device.
Charging pressure should not exceed 2 bar.

Connect vent hose to vent valve (1).

Open vent valve (1) and flush until clear brake fluid emerges without air bubbles.

Close vent valve.

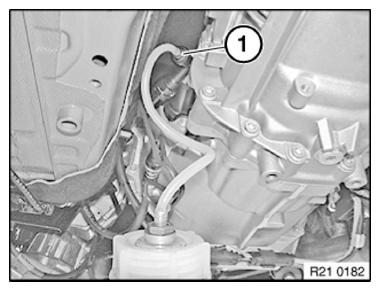

Fig 2: Vent Hose At Vent Valve

G09915033

Courtesy of BMW OF NORTH AMERICA, INC.

Switch off bleeder unit or remove from brake fluid expansion tank.

Correct brake fluid level in expansion tank.
