24 00 058 Installing Exchange Transmission (GA8P70H) N55_Hybrid
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
High-voltage system - danger to life!
WARNING:
The following points must be strictly observed prior to starting work:
- Disconnect HIGH-VOLTAGE SYSTEM FROM POWER .
- Observe SAFETY INSTRUCTIONS for handling with hybrid cars.
IMPORTANT:
- Do not let skin come in contact with transmission oil and do not inhale fuel vapors.
- Wear protective gloves.
- Ensure adequate ventilation
Drain automatic transmission fluid at oil drain plug.
Tightening torque: 24 11 2AZ .
IMPORTANT:
After completion of repair work, program control transmission control unit.
Recycling:
Catch and dispose of escaping transmission oil.
Observe country-specific waste disposal regulations.
IMPORTANT:
- Exchange transmissions are only delivered together with the electrical machine.
- Before installing exchange transmission, always flush TRANSMISSION OIL COOLER TOGETHER WITH LINES .
- After completion of repair work, check TRANSMISSION OIL LEVEL .
- Use only approved transmission oil
.
Failure to comply with this requirement will result in serious damage to the automatic transmission.

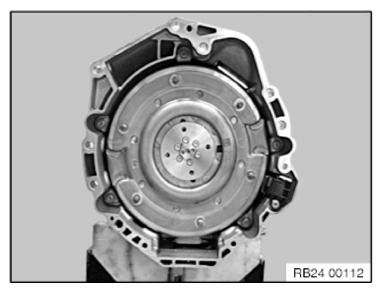

Exchange transmissions are delivered with E-machine and filled with oil.
Necessary preliminary work:
- Remove AUTOMATIC TRANSMISSION .
- Modify TRANSMISSION BEARING BLOCK .
- Modify transmission cooling lines.
Modify transportation retainers.
Convert all cable clips.
Convert all seal plugs.
Convert protective cap on output shaft.
Transmission identification:
- On type plate.
