64 11 823 Replacing servodrive for right rear cabin air blending flap

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove RIGHT GLOVEBOX WITH HOUSING

Position of actuator drive:

See OVERVIEW OF ACTUATOR DRIVES ON HEATER/AIR CONDITIONER

Release screw (1).

Unfasten screws (2).

Installation:

Replace screws (2).

Take off holder (3).

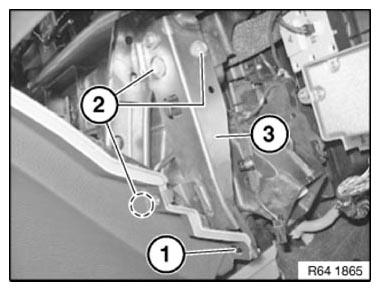

Fig 1: Identifying Holder And Screws

G09929346

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip connector piece (1) and slide downwards.

Installation:

Latching of connector piece (1) must be felt.

Fig 2: Unclipping Connector Piece

G06886223

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove air vent duct (2).

Installation:

Ensure cable routing along air vent duct (2) is correct

Fig 3: Identifying Air Outlet Duct And Screws

G06886224

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove servodrive (2) and unlock and disconnect associated plug connection.

Fig 4: Identifying Servodrive And Screws

G06886229

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Servomotors must be re-addressed in the event of replacement!

Addressing can only be carried out with the BMW diagnosis system.

Service functions:

Body
Heating and A/C function
Flap motors
Re-address flap motors
