64 11.. Overview of actuator drives on heater/air conditioner

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

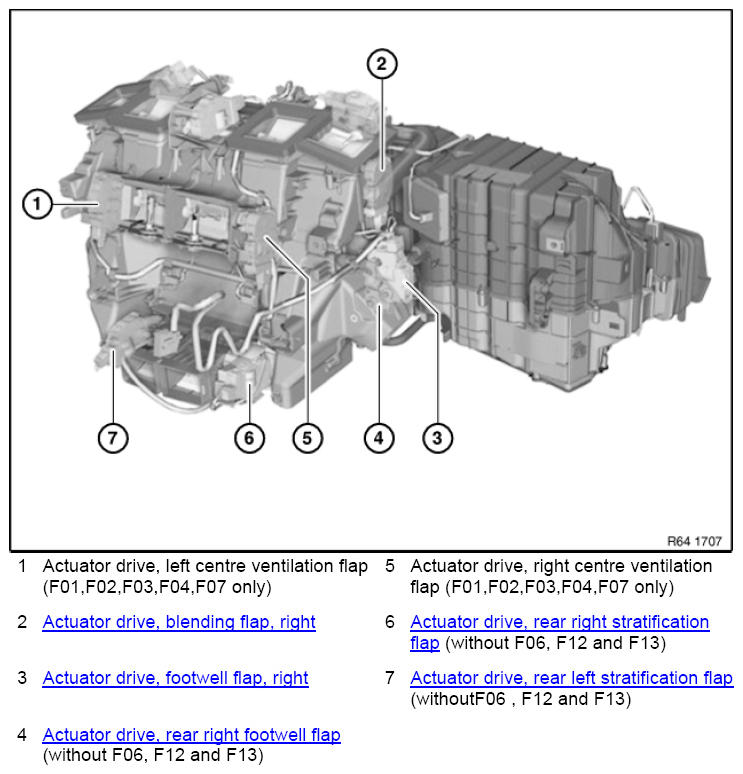

Fig 1: Overview Of Actuator Drives On Heater/Air Conditioner (1 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The High equipment specification heater/air conditioner is pictured!

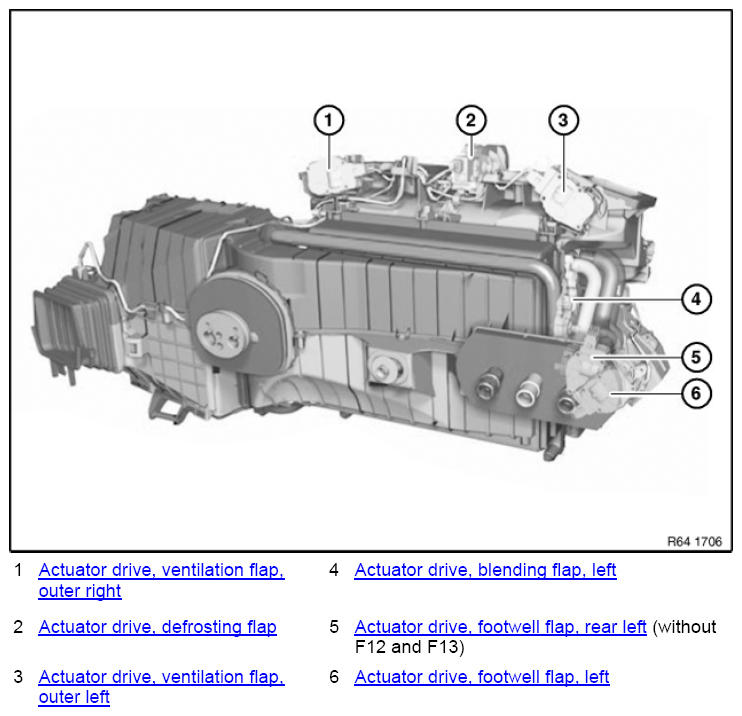

Fig 2: Overview Of Actuator Drives On Heater/Air Conditioner (2 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The High equipment specification heater/air conditioner is pictured!
