17 21 010 Removing And Installing/Replacing Transmission Oil Cooler (S63 B44 T 0)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Risk of scalding!
Only perform this repair work after engine has cooled down.

Necessary preliminary tasks:

Remove RADIATOR .

Recycling

Catch and dispose of drained coolant in a suitable container.

Transmission oil emerges when fluid lines are detached from transmission oil cooler.

Catch and dispose of escaping transmission oil in a suitable container.

Observe country-specific waste disposal regulations.

IMPORTANT: Risk of damage!

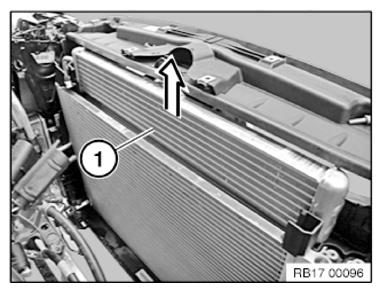

Carefully feed out cooling loop (1) for hydraulic steering towards top and place to one side.

Fig 1: Hydraulic Steering Cooling Loop

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock transmission fluid lines (1) and detach from gearbox oil cooler.

Press in locks (2), raise transmission oil cooler towards top.

Fig 2: Transmission Fluid Lines And Locks

Courtesy of BMW OF NORTH AMERICA, INC.

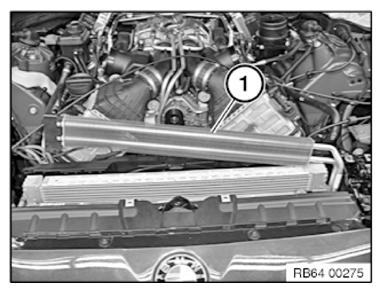

Feed out transmission oil cooler (1) towards top and remove.

Fig 3: Removing Transmission Oil Cooler

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Assemble engine.
Check oil level in transmission. Top up gearbox oil if necessary. See 28 00... CHECKING/TOPPING UP OIL LEVEL IN TWIN-CLUTCH GEARBOX (GS7D36SG) or 00 11 229 CHANGING/TOPPING UP/CHECKING GEAR OIL IN MANUAL TRANSMISSION .
