17 11 000 Removing And Installing Radiator (S63 B44 T 0)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Risk of scalding!
Only perform this repair work after engine has cooled down.

IMPORTANT: Wear safety goggles and protective gloves.

Necessary preliminary tasks:

Remove FAN COWL .
Drain COOLANT .
Unlock and detach coolant hoses on radiator.

IMPORTANT: Ensure that no coolant enter into the plug connection of the auxiliary coolant pump.
Check plug connection for coolant residues. If necessary, blow clean plug connection with compressed air.

Release screws (1) on left and right from cover (3).

Tightening torque: 17 10 1AZ .

Release screws (2) behind sealing lip.

Tightening torque: 17 10 1AZ .

Lift out cover (3).

Fig 1: Screws And Cover Of Sealing Lip

Courtesy of BMW OF NORTH AMERICA, INC.

Remove radiator (1) towards top.

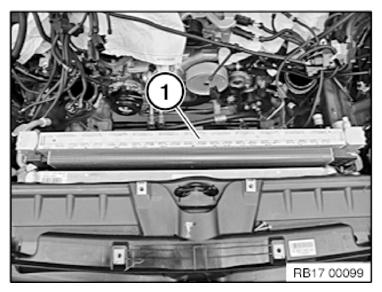

Fig 2: Radiator

Courtesy of BMW OF NORTH AMERICA, INC.

Reassemble the vehicle.

Check COOLING SYSTEM for leaks.
