51 44 011 Removing and installing/replacing headlining (version with slide/tilt sunroof)

Necessary preliminary tasks:

• Open slide/tilt sunroof lid at front
• Remove BOTH TRIM PANELS FOR ROOF PILLAR AT FRONT  (A-pillar)
• Remove BOTH TRIM PANELS FOR DOOR POST AT TOP  (B-pillar)
• Remove BOTH TRIM PANELS FOR REAR ROOF PILLAR  (C-pillar)
• Remove interior roof light  . See 63 31 003 REMOVING AND INSTALLING/REPLACING COMPLETE INTERIOR ROOF LIGHT (REAR) or 63 31 003 REMOVING AND INSTALLING/REPLACING COMPLETE INTERIOR ROOF LIGHT (REAR)
• Remove INSIDE MIRROR
• Remove MIRROR LIGHT
• Remove BOTH SUN VISORS AND COUNTER SUPPORTS
• Remove ROOF SWITCH CLUSTER
• Remove all grab handles  . See 51 16 450 REMOVING AND INSTALLING/REPLACING REAR LEFT/RIGHT GRAB HANDLE  or 51 16 480 REMOVING AND INSTALLING OR REPLACING FRONT GRAB HANDLE
• Detach edge protection  . See 51 72 000 REPLACING EDGE PROTECTION FOR LEFT OR RIGHT FRONT DOOR  or 51 72 010 REPLACING EDGE PROTECTION FOR LEFT OR RIGHT REAR DOOR  from all doors in the headlining area

Only necessary for complete removal of headlining:

• Remove FRONT PASSENGER SEAT

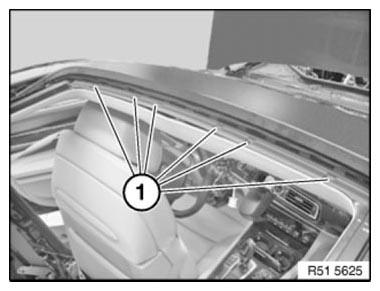

Release screws (1).

Fig 1: Identifying Sunroof Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Brake light area:

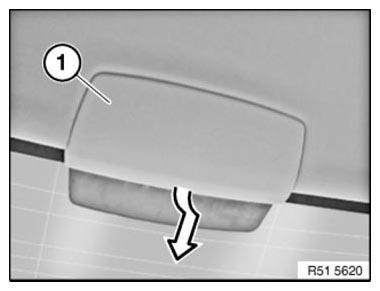

Unclip trim (1).

Fig 2: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

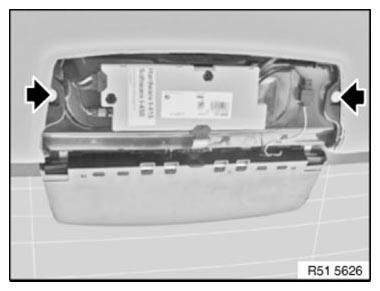

Release clamps (1).

Fig 3: Locating Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Interior roof light area:

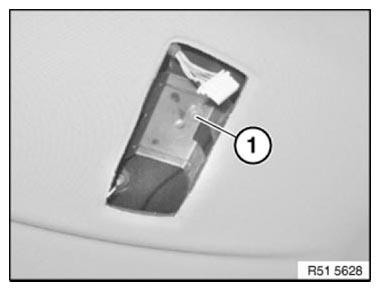

Release screw (1).

Fig 4: Identifying Interior Roof Light Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Switch cluster area:

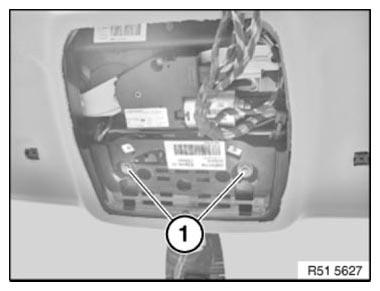

Release screws (1) or expander rivets (1).

Fig 5: Identifying Switch Cluster Screw And Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

• Move backrest of driver's seat to max. rear position.
• Move seat surface of driver's seat to the lowest position.

Only if front passenger seat is not removed:

• Move backrest of front passenger seat to max. rear position.
• Move seat surface of front passenger seat to the lowest position.

Support headlining (1) at front.

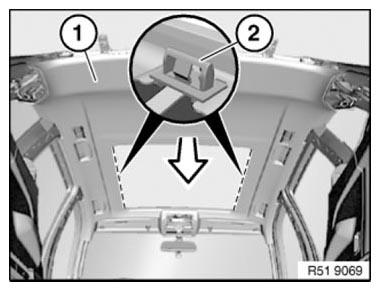

Unclip headlining (1) in marked side area in downward direction (2).

Carefully pull headlining (1) forward until headlining (1) is fed out of remaining clips (2).

Pull down headlining (1).

Installation note:

Unclip rear clips (2) from roof frame.

If necessary, replace faulty clips (2).

Fig 6: Removing Headlining

Courtesy of BMW OF NORTH AMERICA, INC.

Only necessary for complete removal of headlining:

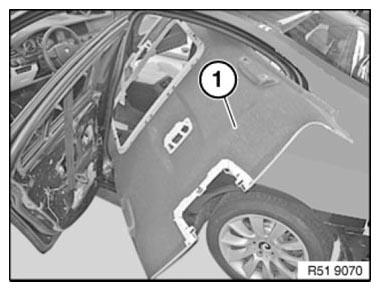

Feed headlining (1) out through rear door on driver's side.

Fig 7: Removing Headlining From Vehicle

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Installation sequence:

1. Snap headlining at rear into clip
2. Screw down front headlining
3. Screw down rear headlining
4. Install grab handles at front first, then at rear
5. Screw down sun visors and counter supports
6. Install brake light cover
7. Secure edge protection of all doors at headlining
8. Add final details to vehicle
