51 16 063 Removing and installing/replacing interior mirror (overview)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Interior mirrors with modified mirror base will be installed as of series launch F20 and for all subsequent series launches.
Observe new REPAIR INSTRUCTIONS !
Further introduction date:

F01, F02, F03, F06, F07, F10, F11, F12, F13, F18	07/2012
F25	03/2012

NOTE: If the document for the selected model is not required or not approved, the following message will be displayed when clicking on the "cross-reference": "No documents with further information available for the currently selected vehicle context".

Distinguishing feature:

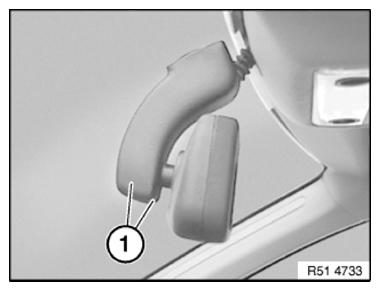

previous version, small mirror base (1) with round base plate on windscreen.

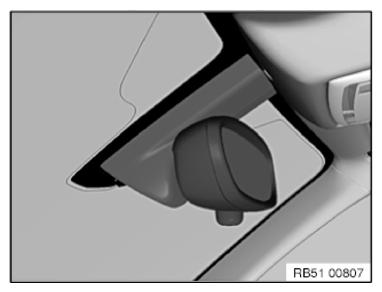

new version, large mirror base (2) with square base plate on windscreen.

NOTE: Dismantling of mirror cap is identical on both versions.

Fig 1: Identifying Mirror Base

Courtesy of BMW OF NORTH AMERICA, INC.

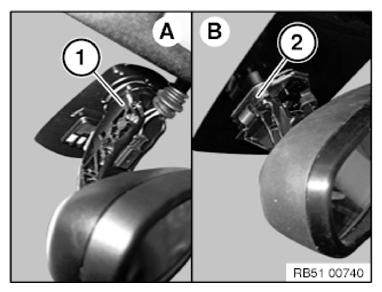

Version with mirror arm end cap:

Previous version.

Fig 2: Identifying Mirror Arm End Cap
Courtesy of BMW OF NORTH AMERICA, INC.

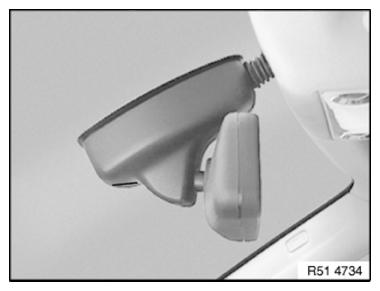

Version with mirror arm end cap:

NEW VERSION .

Fig 3: Identifying Mirror Arm End Cap
Courtesy of BMW OF NORTH AMERICA, INC.

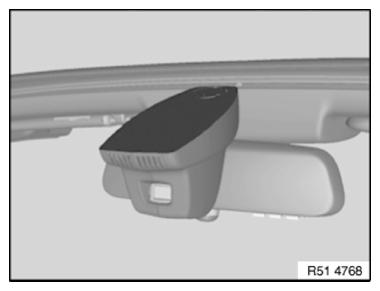

Version with rain sensor:

Previous version.
NEW VERSION .

Fig 4: Identifying Mirror Arm End Cap (Version With Rain Sensor)
Courtesy of BMW OF NORTH AMERICA, INC.

Version with Autobeam:

Previous version.
NEW VERSION .

Fig 5: Identifying Mirror Arm End Cap (Version With Autobeam)
Courtesy of BMW OF NORTH AMERICA, INC.

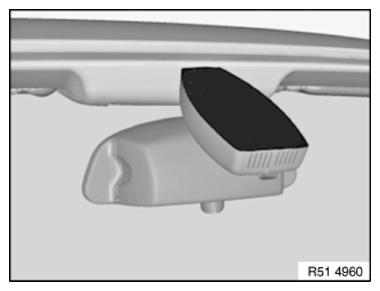

Version with Toll interior mirror for Japan:

Previous version.
NEW VERSION .

Fig 6: Identifying Mirror Arm End Cap (Version With Toll Interior Mirror For Japan)
